Skytrain C-47 / DC-3 - $7.95

This C-47 actually hauled a Waco CG-4 Invasion Glider into the thick of it at Normandy. The glider and tiny model Jeep model is available in matching scale. Redrawn March 07 with the help of Rob Carleen who also created the RD4-5L Navy version that landed at the South Pole in October 1956.

Douglas C-47 SkyTrain (Gooney Bird) DC-3

Douglas C-47 SkyTrain (Gooney Bird) DC-3

Douglas C-47 Skytrain

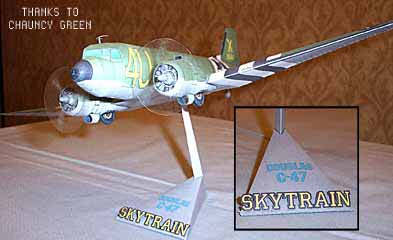

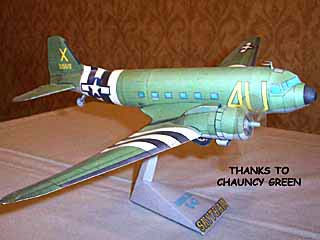

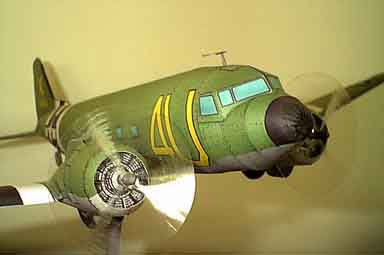

Chauncy's C-47 Douglas Skytrain Few aircraft were as well known or were so widely used for so long as the C-47 or 'Gooney Bird" as it was affectionately nicknamed. The C-47 was adapted from the DC-3 commercial airliner which appeared in 1936. By the end of WWII. 9,348 had been procured for AAF use.

They carried personal and cargo and in a combat role, towed troop carrying gliders and dropped paratroops into enemy territory. This C-47 is on exhibit at the Evergreen Air Museum at McMinnville, Oregon - the new home of the Spruce Goose.

This C-47 actually hauled a Waco CG-4 Invasion Glider into the thick of it at Normandy. The glider and tiny model Jeep model is available in matching scale.


What people say...
I am working on the C-47. I am absolutely stunned by the way this goes together. Right down to leaving off the black lines where coloration overlaps. This sucker is sweet. If it is any indication of how you are going to finesse the bombers....... Seriously, this is spectacular. Dave Caldwell (FEB 17, 01)

Thanks again for all the freebies you have sent me. My art students have been using your models all year long. One of my autistic (not artistic) students keeps asking for my more models to do and I keep printing up more for him to do on the weekends and Easter break. He'll be happy to see this C-47. God bless, Mike Bennett, Canyon Middle School, Yucaipa, CA
Awesome !! Truly awesome AND its a cool addition to the collection.. Modee
I have built a Flying Model of your DC-3. it`s built from Durobatics, which is very thin polystyrene foam sheets (0.05in and 0.025in). Wingspan 63cm, weight 32g, powered by Kyosho / Parkzone Minimum Cessna RX/Regulator and motors flies with the standard 1 Zell 70mAh Akku 4-5 minutes.
Video here: http://www.rcgroups.com/forums/showthread.php?t=864018#post9755662
There is a build thread there: http://www.rcgroups.com/forums/showthread.php?t=861573
your planes are great !! i will definitely do another one :)Best Regards

Phillip Artweger

This is the Skytrain C-47 model that won the FG Modeling Madness (FGMM) 2010 best in class prize. Thanks to John Jogerst who donated his $20 prize money to The Model'n Pals Fund and Hospitalized Vets Program!
Skytrain C-47 Fiddlersgreen Modeling Madness 2010 winner
C-47 Douglas Skytrain
C-47 Russian knockoff
C-47-skis-side

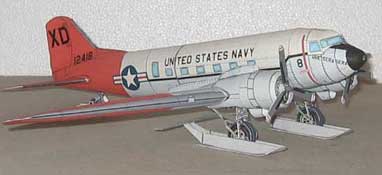

Rob Carleen has added this RD4-SL Polar Explorer version and added it to the folder (see photos below)
The model has, basically, been updated and re-drawn
C-47-skisC-47-skis
DOUGLAS C-47

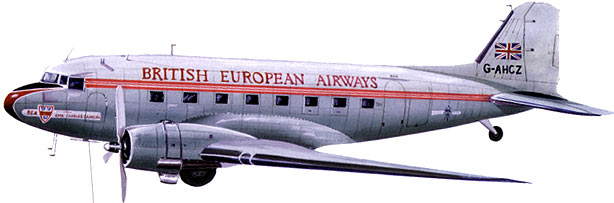

DC-3 Airliner

Douglas C-47, DC-1, DC-3, and AC-47

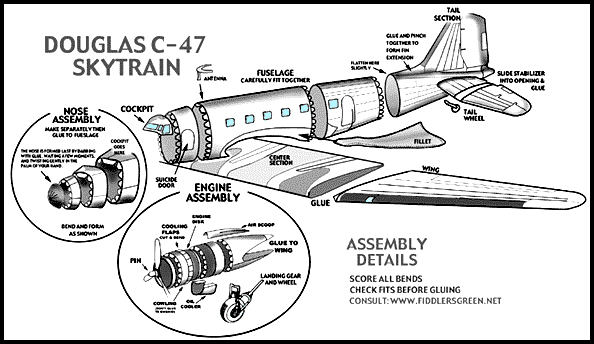

Assembly Details, Douglas Skytrain



The development of the Douglas DC-3 was brought about by the commercial airlines demand for an economical passenger-carrying airplane. Up to 1934, airline passenger craft were too slow and carried too few passengers to be really profitable. United Air Lines had ordered sixty of the new Boeing 247s, the first truly modern airliners and had effectively tied up production. The 247 carried ten passengers at 160 mph and made all other transports obsolete, The other carriers were thus forced to find another plane if they wished to be competitive in the passenger-carrying business.

Douglas C-47

In 1933 the Douglas Aircraft Company designed a new passenger plane, as ordered by Transcontinental and Western airlines, to compete with the Boeing 247. The first model, the DC-1, was soon succeeded by the DC-2 and the start of quantity production. American Airlines, at the time, was using the slow Curtis Condor, which was Fitted with sleeper berths. American needed a new airplane able to compete with the DC-2 and the Boeing 247, but one with sleeping accommodations.

In 1935 C. H. Smith. president of American Airlines, made a direct request of Douglas to build a larger, more comfortable plane which could lure the luxury trade." On December 17, 1935. the Douglas Sleeper Transport (DST) made its first flight.

The original plane was designed as a luxury sleeper with seven upper and seven lower berths and a private forward cabin, The day plane version, known as the DC-3, had twenty-one seats instead of fourteen berths. The design included cantilever wings, all-metal construction, two cowled radial engines, retractable landing gear, and trailing edge flaps. The controls included an automatic pilot and two sets of instruments. The original design was so satisfactory that the basic specifications were never changed.



 Douglas Skytrain

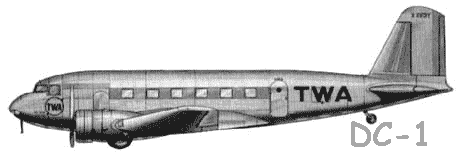

 Douglas C-47 TWA1

American Airlines initiated DST nonstop New York-to-Chicago service on June 25, 1936, and in September started service with the 00-3. A year later, with the 00-3 in service, Smith stated, It was the first airplane in the world that could make money just by hauling passengers' This was the beginning of an immortal airplane known the world over. As the success of the DC-3, with its larger capacity for passengers, its speed, and its economical operation, was realized, airlines throughout the world began placing orders with Douglas.

In the United States the big three transcontinental lines were very competitive. With the advent of OST coast-to-boast service by American Airlines, Trans World Airlines obtained OST's and DC-3s for such flights also. When United Airlines, with its Boeing 247s, saw that the Douglas plane was outclassing its own serviced the company purchased ten OST's and five DC-3s, and began flights on January 1, 1937. In July of that same year United introduced sleeper service between New York and California.

By 1938, 95 percent of all U.S. commercial airline traffic was on DC-3s. Two hundred sixty DC3s, 80 percent of the number of airliners, were in service in 1942 on domestic carriers. As of December 31, 1969, thirty DC-3s were still being used by U.S. airlines.

Foreign companies also began to order the economical Douglas-built plane. KLM was the first European airline to own and operate DC-3s, in 1936, followed by companies in Sweden, Switzerland, France, Belgium, and elsewhere. By .1938 DC-3s were flown by thirty foreign airlines, and by 1939, 90 percent of the world's airline traffic was being carried by these aircraft.

Three views of Douglas Skytrain



The impact of the 00-3 was felt the world over. In July 1936 President Franklin 0. Roosevelt presented Donald W. Douglas, head of Douglas Aircraft, with the Collier Trophy. Recognizing the DC-3 as the "outstanding twin-engine commercial plane," the citation read, This airplane, by reason of its high speed, economy, and quiet passenger comfort, has been generally adopted by transport tines throughout the United States, Its merit has been further recognized by its adoption abroad, and its influence on foreign design is already apparent.

In 1939 the 00-3 was called on to aid the military fleets of the world, Many commercial carriers in Europe put their DC-3s to use as military transports. The United States ordered new versions of the 00-3 modified for troop transport and cargo carrying. These were designated as C-47s and C53s. As military versions were built, they were put into operation in European and Pacific theaters during World War II. C-47s initiated the Berlin Airlift in 1948. In military service since 1941,the C-47 proved most useful in many endeavors.

Many names and numbers were assigned -to the DC-3. England labeled it the "Dakota" or 'Dak." American pilots, during World War II, called it the 'Skytrain," 'Skytrooper, "Doug," or Gooney Bird." The U.S. military's official titles were C-47, C53. 0-117, and R4D. The airlines called it 'The Three." Of all the names the affectionate title "Gooney Bird" lingers on.

The normal gross weight for the aircraft was 25,200 pounds, With twenty-one passengers. Many times these weights were exceeded as conditions required. The normal range was 1500 miles, but this could be extended by adding fuel tanks. The cruising speed varied from 155 mph to 190 mph depending on the load carried and the power used. The DC-3's' safety record was better than- that of most airplanes, primarily because of its great structural strength and efficient single-engine performance.

Since 1935, 803 commercial transports and 10,123 military versions have been built. In addition, about 2,000 have been constructed under license in Russia (Li-2) and about sixty in Japan. In service since 1936, the DC-3 is still in use today throughout the world.

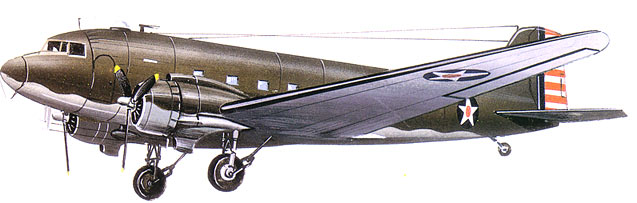

C-47

Douglas C-47 3a


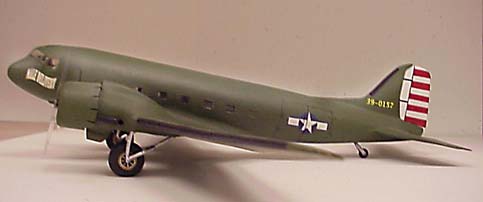

Richard Setter is a modeler of a different breed
. " I used card stock, some can glue (I sort of soak the finished parts in thin ca). The wings are cored with either built up cardstock or thin balsa (I can't remember which on that plane, and it is painted with enamel. Other things, like the struts are wire, fillets are filled with balsa filler, and the canopy is overhead projector film(I'm a H.S. Spanish teacher). To get the right fuse shape, I always make bulkheads. I've built most of your WW2 planes this same way. I realize that you are known for your artwork, but I can't resist painting them myself.... sorry. Anyway you are free to keep the model, and I'm very proud that you like it. As to what to do with it, maybe you can use it to show what can be done using your great art as a starting point. Keep up the great work! I loved your DC3!!!!!!


 Wayne Cutrell's C-47

 C-47 by Wayne CutrellModel sent by Wayne Cutrell. Thanks Wayne! All Wayne's photos are of little dioramas with he model he's made.

Wayne has quite a few models on our site and we really appreciate his efforts and enthusiasm!

Douglas C-47

C-47 Painting

Of all the Allied wartime planes in use with the airborne forces, the C-47 Dakota was probably the best-known and the most widely used. It served both for parachute drops and as a glider tug in the Mediterranean sphere and in the Allied invasion of Europe in 1944. Together, the C-47 Dakota and the Waco glider proved a reliable and successful team which, despite occasional disaster, through unforeseen conditions, greatly contributed to Allied victory

DOUGLAS C-47 'SKYTRAIN'

Known as the Dakota by the British. the C-47 was manufactured by the Douglas Aircraft Company Inc. of Santa Monica, California and was a military adaptation of the DC-3 airliner. The C-47 was, essentially, a freight carrier and displayed a reinforced metal floor, a large door (for loading) and reinforced landing gear. The twin-engine Dakota was a low wing cantilever monoplane. In the supply role, it carried up to 6000 lb of equipment. As a paratroop aircraft, it was equipped with folding benches for 28 fully-armed troops.

WACO CG-4A (reference)

Known as the Hadrian by the RAF, this glider was designed by the Waco Aircraft Co. The CG-4A was a rigidly-braced. high-wing monoplane of fabric-covered wood and steel construction. It could carry freight or 15 fully-armed troops including pilot and co-pilot. The nose was hinged for direct loading of equipment. The normal troop entrance was port side forward.

The CG-4A could also be fitted with two power eggs; i.e. cells each containing a 6-cylinder engine, fuel tank and engine instruments. Originally delivered to North Africa in packing cases for the invasion of Sicily, this was the only glider used in any number by the USAAF. It was also used by the RAF in the Sicily invasion and In Burma by Colonel Phil Cochranes Air Commando in support of the Chindits.

Douglas C-47 Skytrain Douglas C-47 Skytrain

C-47


Of all the Allied wartime planes in use with the airborne forces, the C-47 Dakota was probably the best-known and the most widely used. It served both for parachute drops and as a slider tug in the Mediterranean sphere and in the Allied invasion of Europe in 1944. A.a tug, one of Its most common responsibilities was the Waco glider seen on the.. pages, which, with the Ho... and Harnilca, gliders, was the staple gliding transport of the Allied airborne forces. Together, the C-47 Dakota and the Waco glider proved a reliable and successful team which, despite occasional disaster, through unforeseen conditions, greatly contributed to Allied victory.

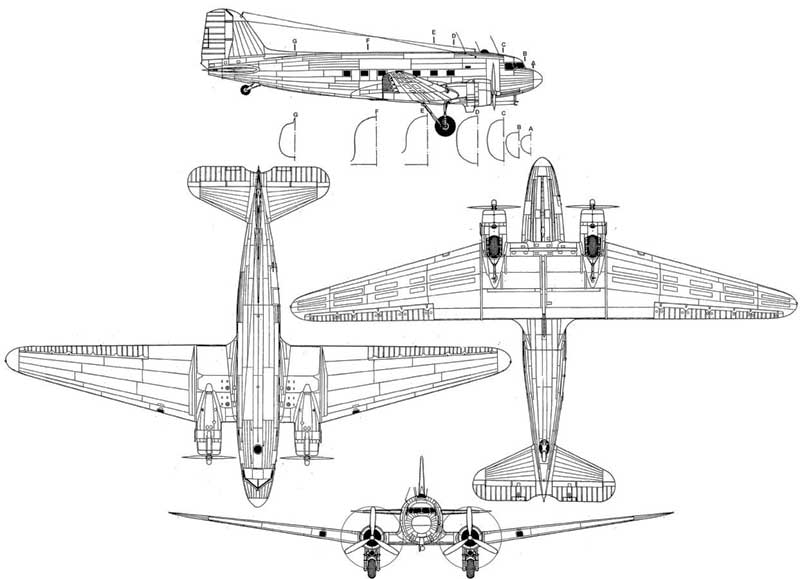

Douglas C-47 Skytrain 3 View

Specifications

Crew: 3
Capacity: 28 troops
Payload: 6,000 lb (8,000 lb - war emergency)
Length: 63 ft 9 in
Wingspan: 95 ft 6 in
Height: 17 ft 0 in
Wing area: 987 ft²
Empty weight: 17,057 lb
Loaded weight: 26,000 lb
Max takeoff weight: 31,000 lb
Powerplant: 2× Pratt & Whitney R-1830-90C "Twin Wasp" 14-cylinder radial engines, 1,200 hp each


Performance
Maximum speed: 224 mph
Cruise speed: 160 mph
Range: 1,600 mi
Service ceiling: 26,400 ft
Rate of climb: 1,130 ft/min
Wing loading: 26.3 lb/ft²
Power/mass: 0.092 hp/lb



Douglas DC -3 over the Grand Canyon

DC - 3 In Flight Painting


Popcan Skytrain Popcan Skytrain
Popcan Skytrain

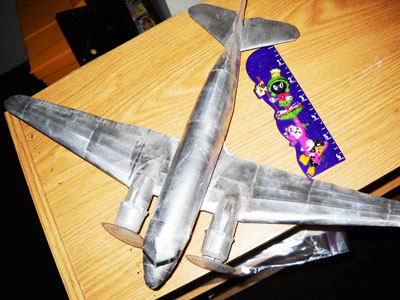

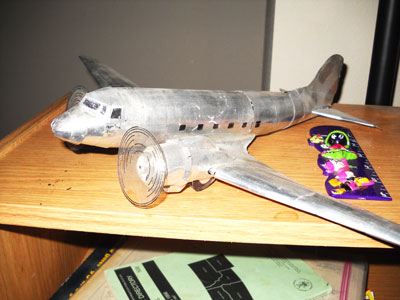

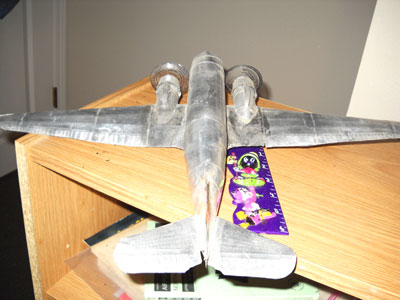

A few years back (That explains the dust!) I built this C-47 using the FG paper kit as a pattern. It is all pop cans (OK I also used 1 24oz beer can *burp*) except for the wing fillets. The curves there proved too complex, but aluminum foil worked well. If you look close under the pilot's window you can see her name in nose art; 'Pop Can Polly.' I also built a similar B-24 in the same scale, but after being surprised on father's day with a ride in the Colling's Foundation Liberator, I presented it to the crew. BTW, I'm a 100 hr private pilot, so after the flight I got the pilot to endorse my log book. I'm the only kid on the block that has .5 logged (as photographer/observer) in a B-24J. Keep up the good work Chip. Thanks for many hours of enjoyment and about 75 planes around the home. Tim

Popcan Skytrain submitted by Tim Louden. In your card modeling you're saving trees and enjoying your favorite beverage. Thanks Tim!

Douglas DC-3 Crash
The DC-3 was pushed backwards by the wind into two other aircraft, destrying one and seriously damaging the other.
