Grumman Skyrocket - $4.95

The XF5F Skyrocket is best known for its appearances in the Blackhawk comic books. The Skyrocket was introduced in the first issue of Military Comics, published in 1941. Skyrockets continued to be flown by the Blackhawk Squadron through the entirety of World War II and afterward.

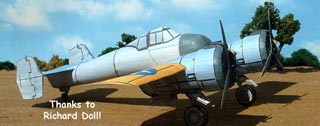

Grumman XF5F Skyrocket - Downloadable cardmodel

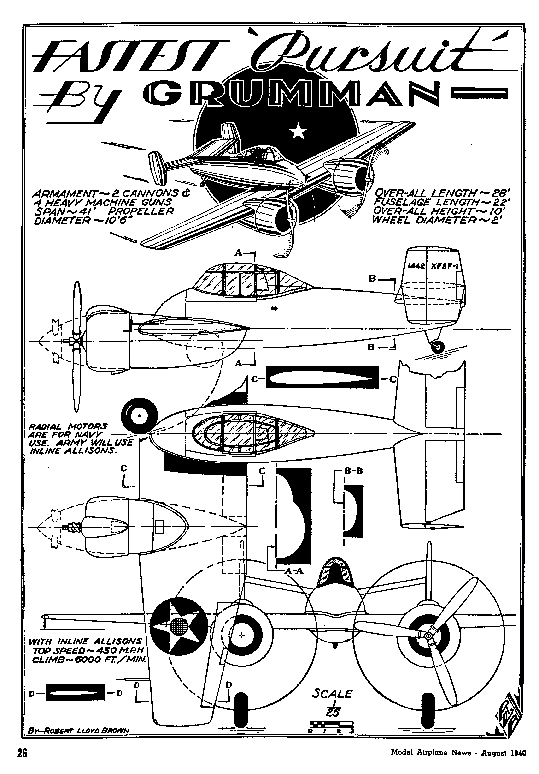

The 'Fastest Pursuit' Grumman Skyrocket XF5F/Black Hawk

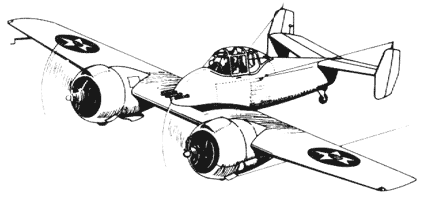

Grumman XF5F Skyrocket Art

FREE DOWNLOAD coming soon



XF5F Skyrocket

In 1938, Grumman presented a proposal to the Navy for a twin engine carrier based fighter. The design was unlike any aircraft that had ever been considered before by the USN. Grumman's concept called for a light weight (under 10,000 lbs maximum take off weight) aircraft powered by two 1,200 hp Wright R-1820 engines.

Being a low wing monoplane, the fuselage began aft of the wings leading edge. At the rear of the markedly short fuselage, the tail assembly was not unlike that of a B-25 Mitchell, however, with an pronounced dihedral to the horizontal stabilizer. The propellers were geared to rotate in opposite directions to cancel the effects of engine torque. The tail wheel was fully retractable.




What people say...

Just finished downloading the Grumman XF5F "Skyrocket" - both versions. The Kid just declared it to be ". . . butt-ugly. . .". What does he know? He's 16.


Boy, did ol' Blackhawk's version d-r-a-i-n the color ink cartridge! It's time to get out the inks and syringe. . .again.


The U.S.N. version fuselage is begging to be done in Rub-n-Buff! Thanks, ymp, John


Chip, your paper models are in a league by themselves.


Absolutely beautiful with excellent background info


. I love building them. Another "paper bender" ,,,Dick T


Sacre Bleu ....I'd completely forgotten about the Black Hawk Squadron. Good show!.... Gill R


I just downloaded both versions of the Skyrocket, and can't wait to build one or both!


You guys are doing great work, with some tremendous models. I can't wait to get the Whittle Jet! ... Bob H


Another neat looking FG aircraft paper model. Again, thank you and your people for your efforts.....Bob P...


Hey there Chipperoonie--Thanks for the Skyrocket!!!! When I was about 14--hell of along time ago, wasn't it--There was a model of the Skyrocket in the hobby shops that I wanted so bad I could taste it. No money. Such is life. Got one now! John F


Thanks for the latest masterpiece - the Skyrocket! That brought back hundreds of wonderful memories of my brother and our pals at our own Secret Black Hawk Headquarters, (the chicken coop) where we planned our latest missions in our twin engine pursuit interceptors (the roof of said chicken coop), underneath the inspiring black on white Black Hawk flag.... Mom never did find that bed sheet...Jay G


Confirmed my suspicions- the Skyrocket fuselage bottom was flat across the bottom.


Grumman XF5F-1 Skyrocket


Gruman Skyrocket




The proposed armament was two 23mm Madsen cannons. The Navy placed an order for one prototype, designated the XF5F-1, on June 30, 1938. The prototype took to the air for the first time on April Fools day, 1940. The XF5F-1 demonstrated good flight performance, attaining a maximum speed of 383 mph at 20,000 feet. Its rate of climb easily exceeded that of its sibling, the F4F Wildcat. Despite continued modifications, Grumman failed to gain any production orders from the Navy. A different version with a longer nose and tricycle landing gear was built for the Army Air Corps under the designation XP-50, though only one prototype was built. However, the investment of time and money devoted to the XF5F-1 and the XP-50 was not wasted. These aircraft provided a base of data which was applied to Grumman's new G-51 proposal, which was to eventually became the F7F Tigercat. Meanwhile, the XF5F-1 continued.

XF5 Grumman Skyrocket

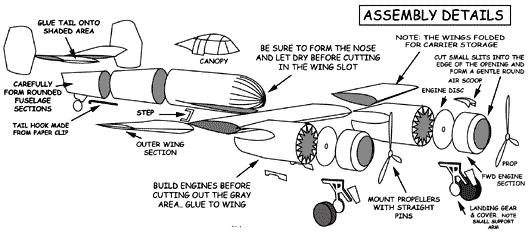

XF5X Skyrocket Assembly

The first monoplane fighter had yet to enter carrier service and the Long Island factory was still struggling to turn the F4F into the effective fighting machine it later became, when Grumman took a great step forward with a proposal to the Bureau of Aeronautics for a twin-engine carrier-based monoplane fighter. The design was considered somewhat daringly ahead of its time but was favorably received and on June 30,1938 a prototype was ordered. the XF5F-1. The plane had an unorthodox configuration: its low-wing was sited so that the forward fuselage began aft of the leading-edge.



Two bulky under wing nacelles housed the two 1,200hp Wright XR-1820-40/42 Cyclone engines, driving three bladed contra-rotating propellers. The tail assembly had twin fins,the landing gear wheels retracted into the engine nacelles.

The wings folded for easy stowage on the carrier flight deck. B.A. Gilles was the test pilot for the XF5F-1's maiden flight on April 1, 1940 and the test program lasted until February 1941 when it was decided that the prototype would have to undergo major modifications.

In an attempt to solve the overheating problems which had plagued the engines, the nacelles were lengthened and spinners were fitted to the propellers; the fuselage was stretched and four .50in machine guns installed in the nose which was sited further forward in front of the leading-edge of the wing.

The pilot was seated lower down in the cockpit. This much-changed XF5F-1 resumed test-flights on July 15, that same year only to be further modified in October.

Apart from a structural weakness in the landing gear, the problem of pilot visibility had not yet been resolved. Testing began once more in January 1942 but with the sole aim of collecting data which could prove useful for the XF7F-1 project, the new ,twin-engine fighter which Grumman had already started to design.

By 1944 the XF5F-1 had made 211 flights and clocked up 155.7 flying hours. The XP-50, a version planned for the USAAF, had a more fleeting existence; the prototype was ordered on November 25, 1939 , powered by two Wright R-1820-67/69 engines with turbo-supercharger identical to the XF5F-1, except for a lengthened nose to accommodate 2 20mm cannons, the XP-50 had only completed 20 hours flying time when on May 14, l 941 a turbo-supercharger exploded in flight, **the aircraft caught fire and its destruction led to the project being abandoned.




** (Thanks to Cam Martin 3/03)
They learned that it was the turbocharger that caused the crash of the XP-50 only because a boy fishing off City Island New York saw the explosion overhead, then later a large splash in the water off shore. He waited until low tide, recovered the turbine wheel and took it to the New York Daily News newspaper, who contacted Grumman...The bolts had stretched, allowing the turbine wheel halves to separate...

P 65 "Ironworks" by Terry Treadwell.






Grumman F5F-1 Skyrocket

The Blackhawk's flew the Skyrocket from their first appearance in 1941 until about 1949. The unique design of the Skyrocket with its fuselage that started about a foot back from the leading edge of its wing made it easily recognizable and it became amazingly well known for a plane that never went into production. However, Charles Cuidera, the artist who created the Blackhawk's, did not feel at all bound by Grumman's design. He immediately replaced the XF5F-1's rotary engines with generic inline engines and then proceeded to replace the twin tail with a more conventional, single tail. See Military No. 2.

skyrocket

The actual XF5F-1 Skyrocket was built by Grumman under a Navy contract for a high performance, twin engine, single-seat fighter. There was only one XF5F-1 built. It is common knowledge in the comics community that the F5F-1 was a failure but it was used for the Blackhawk's because it looked cool. It does have a unique look, but it was not the failure commonly believed.

The F5F-1's test pilot, "Connie" Converse, in 1980 recalled "the flying qualities for the XF5F-1 were good overall. The counter-rotating props were a nice feature, virtually eliminating the torque effect on takeoff ... single-engine performance was good, rudder forces tended to be high in single engine configuration. Spin recovery was positive but elevator forces required for recovery were unusually high.

All acrobatics were easily performed, and of course forward visibility was excellent." In 1941, Navy pilots tested the Skyrocket in a fly-off against the Spitfire, Hurricane, P-40, P-39, XFL-1 Airabonita, XF4U, F4F, and F2A. LDCR Crommelin, in charge of the test, stated in a 1985 letter to George Skurla, Grumman president, "for instance, I remember testing the XF5F against the XF4U on climb to the 10.000 foot level. I pulled away from the Corsair so fast I thought he was having engine trouble.

The F5F was a carrier pilot's dream, as opposite rotating propellers eliminated all torque and you had no large engine up front to look around to see the LSO (landing signal officer) ... The analysis of all the data definitely favored the F5F, and the Spitfire came in a distant second. ..ADM Towers told me that securing spare parts ... and other particulars which compounded the difficulty of building the twin-engine fighter, had ruled out the Skyrocket and that the Bureau had settled on the Wildcat for mass production."2 It is true that the Skyrocket had some developmental problems, but no more than any other aircraft of similar radical design. The Navy was also concerned that the F5F was overweight, but this was more a problem of their expectations than reality. The Navy was used to comparatively small, light biplanes. The newer, high performance monoplanes were all overweight by that standard. The F4U Corsair weighed more than the F5F, even though it had a single engine compared to the Skyrocket's two.

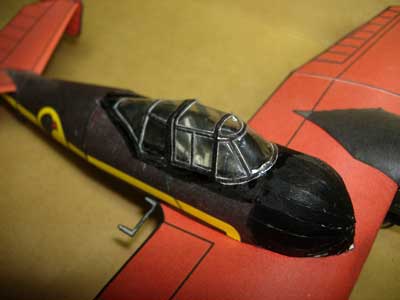

Clear Cabin Black Hawk
"Clear Cabin" Grumman XF5F Blackhawk submitted by Bob Martin. Thanks Bob!


XF5 Grumman Skyrocket comic

XF5  Skyrocket comic

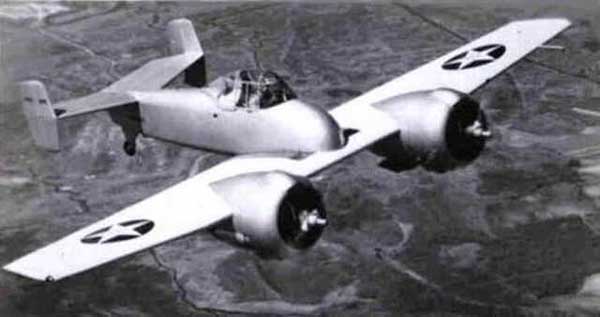

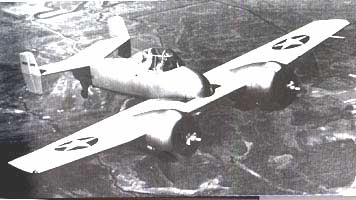

XF5 Grumman Skyrocket In flight

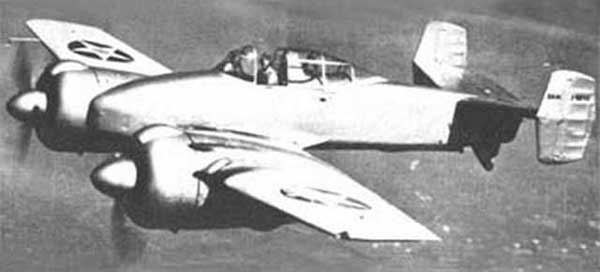

XF5 Grumman Skyrocket In Flight

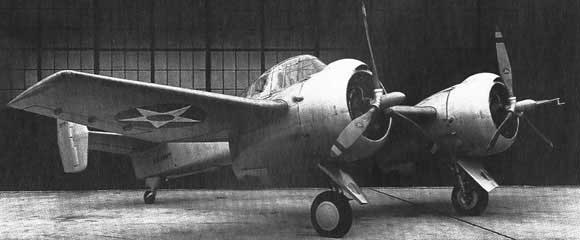

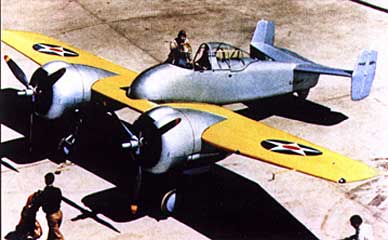

XF5 Grumman Skyrocket parked

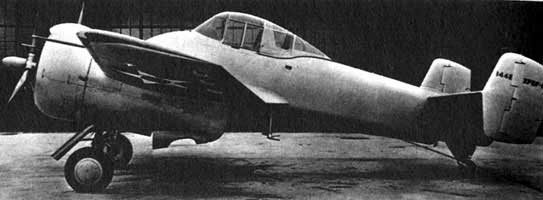

XF5 Grumman Skyrocket side

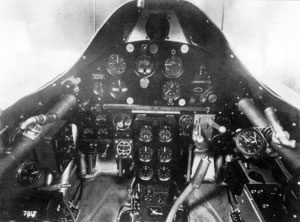

Grumman XF5F Skyrocket Cockpit
The cockpit of the Grumman XF5F Skyrocket.



Specifications

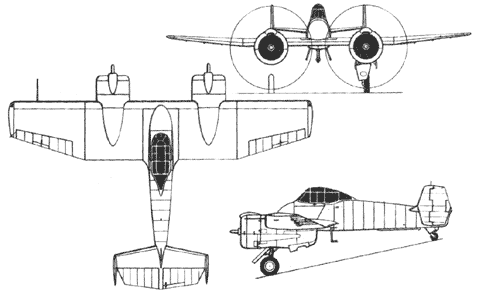

XF5 Grumman Skyrocket 3 vu
Length: 28 ft 9 in
Wingspan: 42 ft
Height: 11 ft 4 in
Wing area: 303.5 ft²
Empty weight: 8,107 lb
Loaded weight: 10,138 lb
Max takeoff weight: 10,892 lb
Powerplant: 2× Wright
XR-1820-40/42
Cyclone nine cylinder radial
air-cooled engine, 1,200 hp each

Performance
Maximum speed: 383 mph
at sea level
Range: 1,200 mi
Service ceiling: 33,000 ft
Rate of climb: 4,000 ft/min

Armament
4 × 0.5 in (12.7 mm) machine guns
2 × 165 lb bombs
