Airco-DH2 - $$5.50

Early air combat over the Western Front indicated the need for a single seat fighter with forward firing armament. As no reliable interrupter gear was available to the British, Geoffrey de Havilland designed the DH.2 as a smaller, single seat development of the earlier two seat DH.1 pusher design.

De Havilland Airco DH-2 WWI Scout-downloadable cardmodel

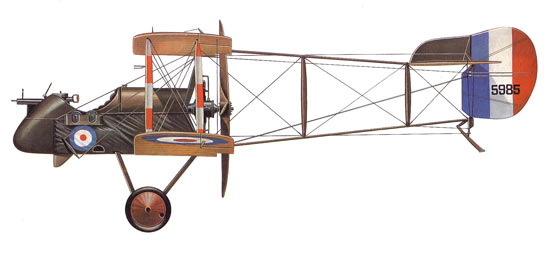

De havilland Airco DH-2 WWI Scout

Airco DH.2 Painting

DH.2 Cardmodel By Dr. Joh Glessner

The DH.2 ultimately equipped six fighter squadrons. The little pusher quickly proved itself more than a match for the Fokker Eindecker, and was heavily engaged during the Battle of the Somme, 24 Squadron alone engaging in 774 combats and destroying 44 enemy machines. The DH.2 had sensitive controls and at a time when service training for pilots in the RFC was very poor it terrified some pilots, who nicknamed it the "Spinning Incinerator", but as familiarity with the type increased, it was recognized as very maneuverable and relatively easy to fly.


The arrival at the front of more powerful German tractor biplane fighters such as the Halberstadt D.II and the Albatros D.I., which appeared in September 1916, meant that the DH.2 was outclassed in turn. It remained in first line service in France, however, until No. 24 and No. 32 Squadron RFC completed re-equipment with Airco DH 5s in June 1917, and a few remained in service on the Macedonian front until late autumn of that year. By this time the type was totally obsolete as a fighter, although it was used as an advanced trainer into 1918.

Distinguished pilots of the DH.2 included Victoria Cross winner Lanoe Hawker (eight victories), who was the first commander of No 24 Squadron and ace Alan Wilkinson (10 victories). The commander of No 32 Squadron Lionel Rees won the Victora Cross flying the D.H.2 for attacking a formation of 10 German two-seaters on 1 July 1916. German ace and tactician Oswald Boelcke was killed during a dogfight with 24 Squadron D.H.2s, although it should be noted that this was due to a collision with one of his own wingmen.

DH.2s were progressively retired by war's end and no surviving airframes were retained. In 1970, Walter M. Redfern from Seattle, Washington built a replica DH.2 powered by a Kinner 125-150 hp engine and subsequently, Redfern sold plans to home builders. Currently a number of the DH.2 replicas are flying worldwide. After evaluation at Hendon on 22 June 1915, the first Airco/De havilland DH.2 arrived in France for operational trials with No. 5 RFC Squadron but was shot down and its pilot killed (although the Airco DH.2 was recovered and repaired by the Germans).

No. 24 Squadron RFC, the first squadron equipped with the Airco DH.2 and the first complete squadron entirely equipped with single-seat fighters in the RFC (or, incidentally, any other flying service), arrived in France in February 1916.

Dh-2 image








Finally finished the Airco Dh-2. Beautiful plane and beautiful model. Photos attached. The designer did a great job on her. Well worth the effort and timeline to bring this model to fruition. This was a fun build and the most research I've put into a model yet. Will get a review/build write up on my site next week sometime. 11/09 Joe Golden

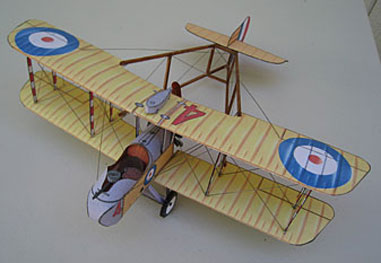

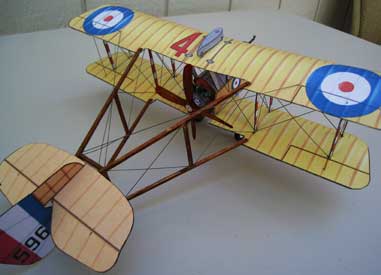

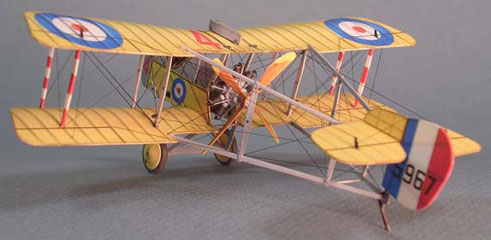

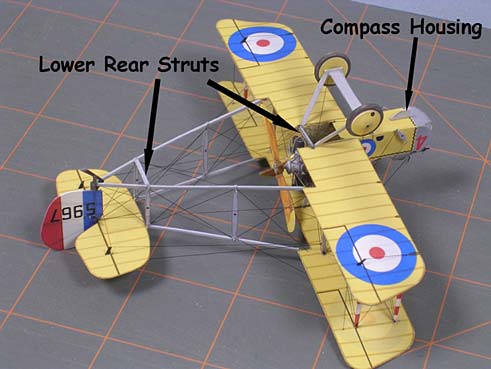

Steve's DH-2 cardmodel

Steve's DH-2 cardmodel
Steve's DH-2 cardmodel
Here are some photos of my DH-2, hope you enjoy them. The rigging is done with fine piano wire, and the prop is hand carved from balsa, Keep up the good work. I would like to see some more bombers in the future, maybe a Lancaster, or a Betty. Steve Scripilliti

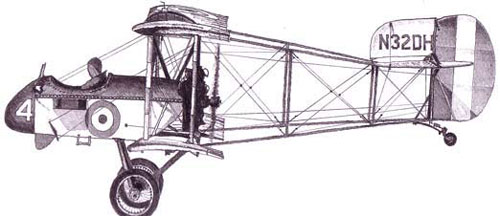

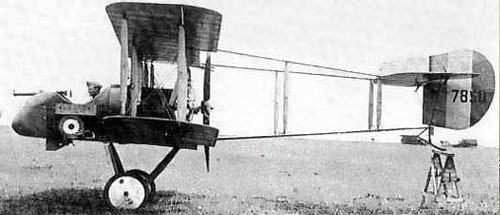

Airco De havilland DH.2



Airco Dh-2 vrs Fokker EIIIThe first prototype of the Airco De Havilland DH2 reached the front on July 26, 1915, and immediately ran out of luck. On August 9, the aircraft, piloted by Captain 11. Maxwell-Pike, disappeared behind the German lines. The pilot had been wounded and the DH 2 was in German hands. Right up to the end of the war experiments were made with various engines, and for a short time, DH 2's were used experimentally against Zeppelins. Though its fame was short-lived, it was still in service until 1918. The Airco DH.2 was a single-seat biplane "pusher" aircraft which operated as a fighter during the First World War. It was the second pusher design by Geoffrey de Havilland for Airco, based on his earlier DH.1 two-seater. The DH.2 was the first effectively armed British single-seat fighter and enabled Royal Flying Corps (RFC) pilots to counter the "Fokker Scourge" that had given the Germans the advantage in the air in late 1915. Until the British developed an interrupter gear to match the German system, pushers such as the DH.2 and the F.E.2b carried the burden of fighting and escort duties.

CAMOUFLAGE AND INSIGNIA

With the outbreak of WWI, it became evident that the airplane had to be rendered less visible, both on land and in the sky. Up to thisAiarco DH-2 Scout WWI point, no one had really given much thought to an airplane's appearance, but now every nation had to face the problem of camouflage, oftentimes coming up with Q quite original solutions. The colors tended toward dark greens and browns for the top surfaces, light beige and blues for the bottom. It was also necessary to be able to distinguish friend from foe, so each nation developed its own system of identification codes and insignia. The Allies used three concentric circles, their colors varying from country to country, while the Germans chose a white square framing a black cross, symbol of the Teutonic Knights.

An important discovery was the optical effect crested by stripes of two or more colors, which served to 'dissolve' the plane's silhouette, a camouflage technique favored mostly by the French and the Germans. This evolved into even more sophisticated patterns of interlocking polygons of four or more different colors which were effective on both the top and bottom surfaces.



THE ROTARY ENGINE

LeRhone Rotary Engine


The invention of the rotary engine changed the world of aviation forever. The brothers Louis and Laurent Seguin had begun working on such an device in France in 1908, applying a principle introduced in 1887 by the Australian Lawrence Hargrave.
LeRhone Rotary Engine



By 1909 their Parisian factory, the Societe des Moteurs Gnome, was producing the first of which would become a long series of ever more powerful engines that dominated airplane manufacture throughout World War I. The main architectural innovation of the rotary engine lay in the mobility of the cylinders: only the crankshaft was bolted down, while the crankcase end radially-arranged cylinders rotated freely around it, thereby driving the propeller.

WWI Aviator





The result was an air-cooled propulsion unit, compact and light, with a particularly favorable weight-to-power ratio ideal for machines that had to be, above all else, lightweight and fast. Moreover, its elevated torque and consequent gyroscopic effect gave the airplane exceptional agility. The rotary engine inevitably became the preferred means of propulsion for fighter planes end, given the times, demand from all over Europe was soon soaring.

The Germans, despite having developed several excellent inline engines over the years, turned to the rotary, the most famous of which was the Oberursel, more or less an exact copy of a French engine made by Le Rhone, a company that merged with Gnome in 1919.

Over the course of their development, these engines grew' in power from 50 to nearly 200 horsepower by war's end. The most widely used configuration had nine cylinders.

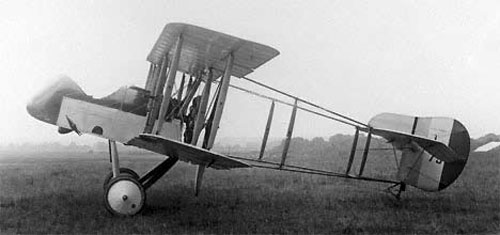

Airco DH.2
Airco DH.2
Airco DH.2

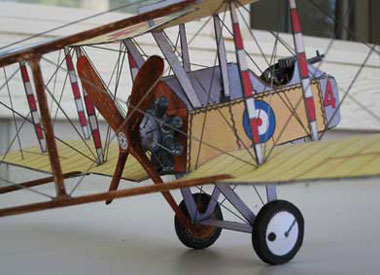

DH.2 Submitted Card Model
DH.2 Submitted Card Model

DH.2 Submitted Card Model





Help...
I lost the modeler's name for this great Dh-2



Vickers Gunbus

The Vickers company overcame the problem of firing a machine-gun forward, on the Gunbus, by making the aircraft a two-seater with a pusher engine and seating a gunner in the nose. This made it easier on the pilot but also created a large, less nimble fighter for the Allies.








Specifications for the de Havilland (Airco) DH.2

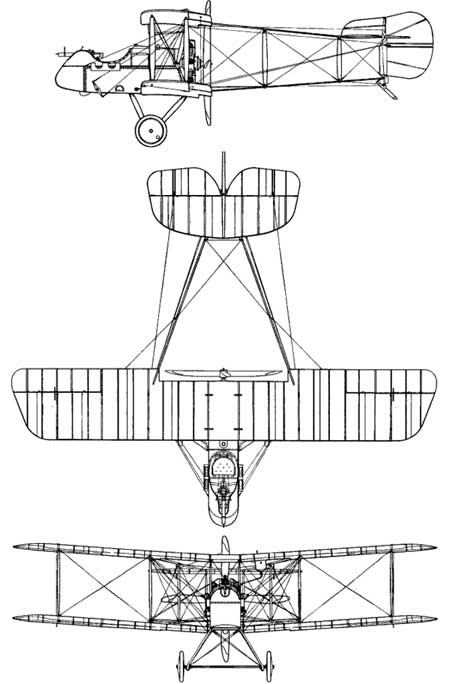

3 View Airco DH.2

Crew: 1
Length: 25 ft 2½ in
Wingspan: 28 ft 3 in
Height: 9 ft 6½ in
Wing area: 249 ft²
Empty weight: 942 lb
Max takeoff weight: 1,441 lb
Powerplant: 1× Gnome
Monosoupape rotary engine, 100 hp


Performance
Maximum speed: 93 mph
at sea level
Range: 250 mi
Service ceiling: 14,000 ft
Rate of climb: 545 ft/min
Wing loading: 5.79 lb/ft²
Power/mass: 0.069 hp/lb
Endurance 2¾ hours
Climb to 5,000 ft 24 minutes
45 seconds

Armament
1 × .303 in (7.7 mm) Lewis gun
using 47-round drum magazines

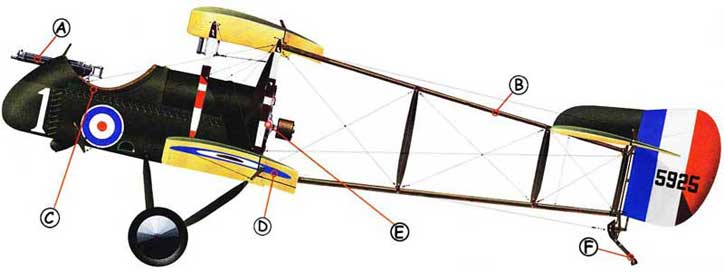

Airco DH.2 Callout
A: Once pilots had adopted the tactic of aiming the aircraft not the gun, the gun was fixed in position but some movement up and down was allowed for minor aiming corrections B: While they might appear fragile, the tubular steel tailbooms of the DH.2 were comprehensively rigged, which made them strong and flexible. C: Not only was the pilot expected to juggle his Lewis gun from side to side while maintaining control of the aircraft during combat, but he also had to change the heavy 47-round ammunition drums as they became empty.
D: Top and bottom wings carried ailerons. Once initial structural problems had been overcome and pilots had mastered its tricky handling, the DH.2 proved to be a maneuverable fighter. E: Most DH.2s were powered by the Gnome Monosoupape rotary engine, but some later aircraft featured the 110 hp. Le Rhone engine. F: A steerable tailskid aided ground handling, which was also improved, along with flight performance.

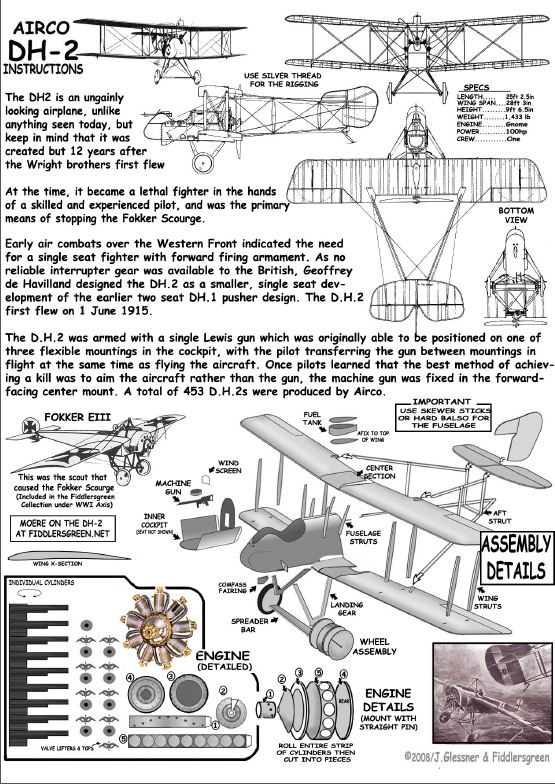

Airco DH.2 paper model instructions

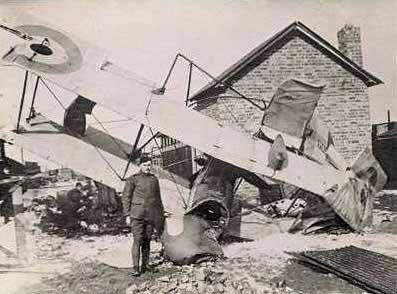

Airco DH.2 Crash
