The Convair XFY Pogo tailsitter was an experiment in vertical takeoff and landing. The Pogo had delta wings and three-bladed contra-rotating propellers powered by a 5,500 hp Allison YT40-A-16 turboprop engine.

Convair VTOL XFY-1 POGO downloadable card model

XFY-1 Convair Pogo Vertical Takeoff 'Tail Sitter"

Convair XFY-1 Pogo

Pogo and Ladder Vertical landing and takeoff have long been a dream of aviation designers and have presented considerable challenge. It requires an immense amount of power to get off the ground without the benefit of wings, and it was only in the years after World War II that powerful enough engines became available.

It was then that some truly strange aircraft took to the skies, most notable the Convair XFY-1 "Pogo." The XFY-1 was a "tail-sitter," using the most powerful turboprop available in the Western world.

The U.S.Navy's Bureau of Aeronautics in 1951, after having ordered two prototypes of the revolutionary supersonic XF2Y-l seaplane, issued to Convair a Request for proposals for a single-seat vertical take-off and landing fighter which could be used to escort convoys, based on cargo vessels which did not have flight decks. The U.S.Navy accepted Convair's submission and in March 1951 ordered the XFY-1 as well as placing an order for Lockheed's project, which was designated XFV-1.




What people say...
Looks like another seemingly difficult subject has been brought to it's knees, i.e. easy to build. Now the Triebflugel and Natter have some company. :-) Congratulations and high-fives!...TR

This Pogo is well, Weird!! I love it!....George R.


The Pogo is amazing. I love all the facts on your instruction and model pages. It is really great to be able to do something fun and educational with the kids. You guys are the best!...Peter H.


The improved layout of the propellers -first seen on the B-17 - continues. It works wonderfully. I made a spacer the same size as the propeller hub from cardboard with notches cut in it for the ends of flat toothpicks to serve as stiffeners for the blades. Slow work making them, but it does the job. John T


Oh boy! Oh boy! I am bouncing up and down over the pogo.H-m-m-m-m-m-m-m-m....nice visual. Hope I don't whack my head on the ceiling like the last time. fp


Dear Fiddlers Green,
While looking up a date on the XFY-1 Convair "Pogo" I saw that you had a "picture" of the Allison turboprop engine. Actually what you have is not an Allison engine, nor a T-40 as used in the aircraft. Otherwise it is a great article!
Dave Newill, President, Rolls-Royce Heritage Trust, Allison Branch, Inc. (all fixed Dave Thanks!)

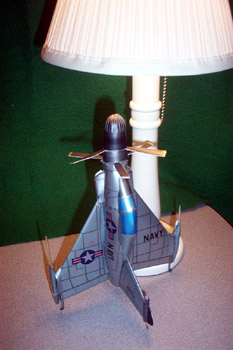

Pogo Lamp

Vertijet Model Video (must see!)

Air Force Video






Convair XFY-1 "POGO"



Convair Pogo XFY-1 Experimental Aircraft

The U.S.Navy's Bureau of Aeronautics in 1951, after having ordered two prototypes of the revolutionary supersonic XF2Y-l seaplane, issued a request for proposals for a single-seat vertical take-off and landing fighter which could be used to escort convoys, based on cargo vessels which did not have flight decks. The U.S.Navy accepted Convair's submission and in March 1951 ordered the XFY-1 as well as placing an order for Lockheed's project, which was designated XFV-1.

Convair Pogo Vertical Takeoff AircraftThe Pogo, as the XFY-1 was called, had a short, stubby fuselage, on which were mounted two near-delta wings and two enormous fins, one ventral and one dorsal, giving the arrangement a cruciform appearance. A small wheel was attached to the apices of all four of these surfaces and when parked, the aircraft rested, nose in the air, on these four wheels. Power was supplied by a 5,850hp Allison YT40-A-6 turboprop engine, driving two coaxial propellers and a large spinner. The ventral fin could be jettisoned in flight were it necessary to make an emergency belly landing (on land or sea). By March 1954 the prototype was completed and taken to Moffett Field naval base in California where, inside an enormous hangar, braced by a special rig to prevent any possible chance of the aircraft toppling over, powered tethered tests were carried out, during which the aircraft was allowed to lift itself a few inches off the ground.

Finally on August 1, 1954, the XFY-1 was taken outside the hangar and it was up to the test pilot, J.F. (Skeet's) Coleman to make the first vertical take-off; the plane rose to a height of 40 feet, followed by a trouble-free landing. The XFY-1 was then taken to the Naval Auxiliary Air Station at Brown Field for further testing and this culminated, on November 4, in the first complete experimental flight: the aircraft achieved vertical take-off, subsequently carried out the transition from vertical to horizontal flight and flew normally for about 20 minutes, before lowering itself gently to the ground. Skeet's Coleman was very enthusiastic about the XFY-1 and his verdict was that he found it easier to handle and more maneuverable than any other plane he had ever flown.

There was no doubt that the XFY-1 project was a success so far but the U.S.Navy did not feel it was a practicable proposition for series production and deployment as a warplane at that point. There were still many problems to overcome; not least the pilot's uncomfortable accommodation as well as the need to develop a zero altitude ejector seat for his safety. Before the test program was halted, however, the XFY-1 flew for a total of 40 hours and earned itself the distinction of being the first vertical take-off and landing aircraft to fly successfully in the history of aviation.

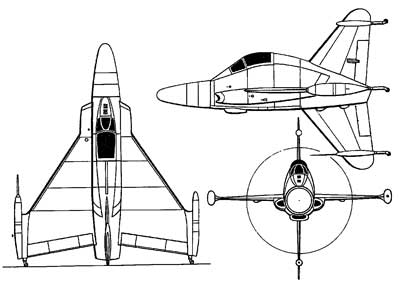

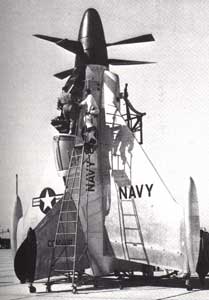

3 View of Convair Pogo Convair XFY-1 Pogo - Pilot climbing in

 XFY-1 Pogo take-off

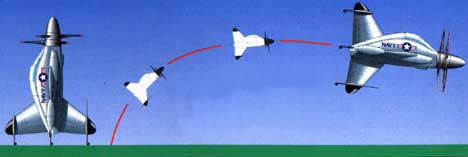

 HORIZONTAL FLIGHT
As the aircraft accelerated, the pilot pushed the nose of the "Pogo" over. More and more lift was supplied by the wings.


TAKEOFF
To take off, the pilot simply ran his engine up to full power until the aircraft began to lift off the ground on engine power alone.

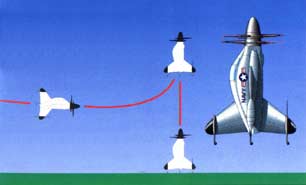

 XFY-1 Pogo landing


 LANDING
Judicious use of the throttle controlled the rate of descent, though it also took considerable pilot skill.


 BACK TO VERTICAL
To slow down the pilot throttled back. As the nose came up toward the vertical, the aircraft slowed still more until the aircraft was suspended solely by engine power.





The Convair XFY-1 Pogo was an experimental vertical takeoff aircraft of the 1950s. It was a result of a proposal issued by the Navy in 1948 for an aircraft capable of vertical takeoff and landing (VTOL) aboard platforms mounted on the afterdecks of conventional ships. In 1950, this requirement was revised to call for a research aircraft capable of evolving into a VTOL ship-based convoy escort fighter. In March of 1951, three prototypes were ordered from Convair under the designation XFY-1. A similar aircraft was also ordered from Lockheed under the designation XFV-1.

The XFY-1 sat on its tail for landings and takeoffs. It had a large delta wing with two pods at the extreme and two large vertical fins above and below the fuselage. The aircraft rested on a set of small castoring wheels at the tips of the wing and fin. At takeoff, the engines ran up to full power and the aircraft ascended vertically, then when it reached a safe altitude it gradually nosed over into conventional horizontal flight. At landing, the aircraft approached the landing pad while pitched up into a nose-high position and then descended to the ground under gradually reduced power. If an emergency were to occur, the ventral fin could be jettisoned so that the aircraft could make a crash-landing in conventional, wing-supported mode.

The XFY-1 was powered by an Allison YT40-A-6 turboprop (which consisted of two T38 turboprops coupled together) driving a pair of Curtiss-Wright 16-foot three-bladed counter-rotating propellers in the nose. The engine offered a power of 5500 shp. The air intakes for the engines were located in the extended roots of the delta wing, and the exhaust was in the extreme tail.

The single pilot sat underneath a cockpit canopy which slid toward the rear. The ejector seat was mounted on gimbals and tilted 45 degrees when the aircraft was in the vertical position. Entry to or exit from the cockpit required a special ladder, and was by all accounts rather awkward. During takeoffs and landings, the canopy was slid to the rear to give the pilot a better view.

The proposed armament (never actually fitted) was four 20-mm cannon fitted in the two wingtip pods. Alternatively, 48 2 3/4-inch folding-fin rockets could be fitted.

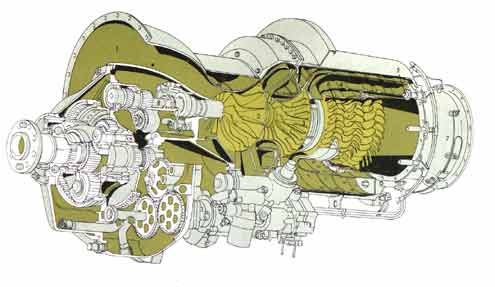

Allison Turboprop Engine for Convair Pogo Experimental Aircraft
This is a diagram of a jet turbine and not the actual Allison that was used in the Pogo



Allison T-40A Engine..
The T40 was an attempt to produce a high power turboprop engine by combining two T38 engines side-by-side with a joint gearbox to combine power and reduce shaft speed to that necessary for a propeller. This combination was used with a contra-rotating propellers system.

Allison T-40A Engine

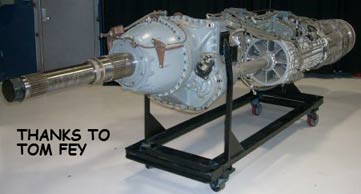

I took this earlier this year at the Rolls-Royce Allison Division Museum in Indianapolis, IN. Feel free to use it for your documentation and keep up the good work. Tom Fey


In the late 1940s and early 1950s this engine was favored by the US Navy and was used in several aircraft, the XA2D, XA2J, P5Y, R3Y, and the several VTOL developments including the Hiller X-18, the XFV-1, and XFY-1. The USAF's XF-84H Thunderscreech also tried this engine with a single 3-bladed propeller.


As the individual power plants were clutched into the gearbox, it was intended in most instances that the aircraft could cruise on one half the engine and only engage the second power-section when there was need. In practice the system did not work so well. Failure to recognize that one of the T38s had failed, and its compressor was devouring power produced by the other section, led to the loss of the first prototype XA2D-1 and its pilot Lt. Cmdr. Hugh Wood on 14 December 1950.

The major problems of the T40 were its fragile gearbox, and the prop-control system which used 25 vacuum tubes, and was far from reliable.

T40-engines on the XP5Y-1 prototype in 1950
The T40 never produced the 5,500 horsepower it was supposed to deliver, and was plagued by gearbox failures, runaway props and prop control failures.





Convair XFY-1 PogoBefore attempting the first flights, the prototype ..XFY-1 was attached to a complex tether system inside a huge hangar at NAS Moffett Field, California that allowed the aircraft to move up or down freely, but severely limited the lateral displacement. During the summer of 1954, test pilot James F. "Skeet's" Coleman made several tethered flights in this system. The first un-tethered vertical flight was made on August 1, 1954. During the next two days, several vertical hovering flights were made during which the aircraft reached altitudes as high as 150 feet. The aircraft was then returned to San Diego for further tests at NAAS Brown Field. The first successful transition to horizontal flight took place on November 2, 1954, during which the XFY-1 flew horizontally for 20 minutes before coming back and landing inside a 50-foot square. This was the first successful VTOL flight in history in an aircraft that was not a helicopter or an autogiro.  For this feat, Coleman was awarded the Harmon Trophy.

Unfortunately, the XFY-1 was difficult to land because of a poor view from the cockpit of the landing area and the unusual pilot posture. The landing operation would probably have been difficult if not impossible for a pilot of ordinary ability to perform on a small deck aboard ship, especially in rough seas where the deck was pitching back and forth. In addition, the T40 turboprop was mechanically complex and was thoroughly unreliable and subject to frequent breakdowns.  The T40 was, in fact, the cause of the failure of several combat aircraft projects of the era.   In addition, by this time the performance of the XFY-1 was quite a bit less than that of conventional jet aircraft, and would probably not have been able to hold its own in air-to-air combat. For this reason, the XFY-1 program was cancelled after only 40 hours of flight testing.

Only one of the three XFY-1s actually flew. 138648 was used strictly as an engine testbed and 138650 was used only for static tests. The sole flight article (13864) was displayed for a while at NAS Norfolk, Virginia, but is now in storage at the Paul Garber restoration facility at Suitland, MD.

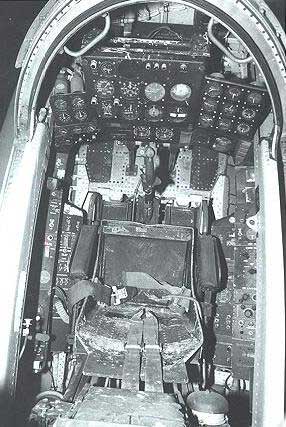

Convair XFY-1 Pogo Cockpit
Convair XFY-1 Pogo Cockpit.



Specifications

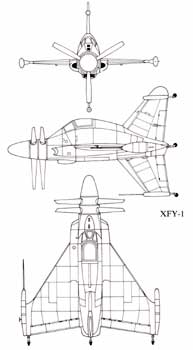

3 View Convair XFY-1 Pogo
Technical data:
XFY-1
Type: Vtol fighter
Crew: I
First order: 2
Order date: 3/31/1951
First flight: 8/1/1954.
Power plant: Allison YT40-A-6, 5,850 hp.
Max wingspan: 27ft 7 3/4in
Wing area: 355 sq ft
Length: 34ft 11 3/4in
Height: 22ft 1 in
Gross weight: 16,2501b
Max speed at sea level: 474 mph
Max speed at: 15,000ft: 610 mph
Max speed at: 35,000ft: 592 mph
Climb: 20,000ft / 2.7min
Climb: 10, 500ft / 1 min
Service ceiling: 43,700 ft
Fuel capacity: 576US gal.
Armament: 4 x 20 mm (not installed)
Two contra-rotating coaxial, three-bladed propellers.

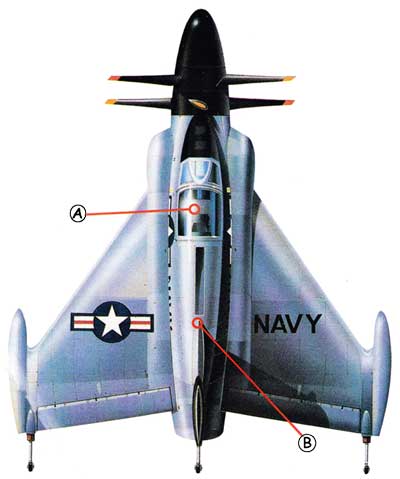

Convair XFY-1 Pogo Callout Top
A: For vertical flight, the pilot's seat rotates forward 45 deg. He still had to look over his shoulder to judge the distance to the ground, an awkward procedure that added considerably to the pilot's workload on landing. B: Control in normal flight was provided by full-span ailerons and large rudders on both the dorsal and ventral fins. During vertical flight the propeller slipstream was deflected over these surfaces for control.



Convair XFY-1 Pogo Callout
A: Small castoring wheels on strong single-strut shock absorbers were fitted to the wing and fin tips. These give a stable base for landing, which was eventually intended to be made on a heaving ship's deck. B: The "Pogo" could not be landed conventionally. The large delta wings were mated with huge upper and lower vertical fins to produce a cruciform layout A normal undercarriage would have been impossibly cumbersome. C: The Allison YT-40-A-6 turboprop was the most powerful engine of its type in the West, generating over 5,500 horsepower. A small amount of jet thrust from the tailpipe was added to that. D: Power from the Allison engine was delivered to two three-blade contra-rotating propellers. Without them, the torque from a single propeller would have made control during vertical takeoff or landing impossible.
