Grumman Hellcat - $$5.50

The Grumman F6F Hellcat was a carrier-based fighter aircraft developed to replace the earlier F4F Wildcat in United States Navy service. Although the F6F bore a family resemblance to the Wildcat, it was a completely new design powered by a 2,000 hp Pratt & Whitney R-2800. Some tagged it as the "Wildcat's big brother"

Grumman F6F Hellcat WWII US Navy Fighter Downloadable Cardmodel from Fiddlersgreen

Grumman F6F Hellcat WWII US Navy Fighter

Grumman F6F Hellcat

Grumman F6F Hellcat  cardmodel

The American Grumman F6F Hellcat fighter from the same stable of the Grumman "Iron Works," shared a heritage with the earlier F4F Wildcat, but was a completely new design sharing only a family resemblance to the Wildcat. Some wags tagged it as "Wildcat's big brother" . The Hellcat and the Vought F4U Corsair were the primary United States Navy carrier fighters in the second half of World War II. The Hellcat proved to be the most successful aircraft in naval history, destroying 5,163 aircraft in service with the US Navy and US Marine Corps, plus 52 with the Royal Navy's Fleet Air Arm during World War II. After the end of World War II, the Hellcat aircraft was rapidly phased out of frontline service, finally retiring in 1954 as a night-fighter in composite squadrons.

The Hellcat was designed to be the U.S. Navy carrier fighter replacing the F4F Wildcat .It provided an improved rate of climb, more speed, and most importantly, a tighter turning circle necessary to stay with a Zero in a dogfight. Model has folding wings just like the

The Grumman Hellcat in flight was designed to be the U.S. Navy carrier fighter replacing the F4F Wildcat. The older F4F had demonstrated the need for a fighter surpassing the Japanese Zero. The Hellcat provided an improved rate of climb, more speed, and most important, the turning circle necessary to stay with a Zero in a dogfight. A certain similarity in appearance marked the newer plane and its predecessor...



Grumman F6F Hellcat

Grumman F6F Hellcat

Grumman F6F Hellcat  FlyingWell before the attack on Pearl Harbor and the F4F Wildcats engaged the more maneuverable and better climbing Japanese A6M Zero in combat in the South Pacific, Grumman was working on a successor to the Wildcat that could take on the Zero. The contract for the prototype XF6F-1 was signed on 30 June 1941. The F6F was originally to be given the Wright R-2600 Cyclone engine of 1,700 hp, but based on combat experience of F4F Wildcat and Zero encounters, Grumman decided to further improve their new fighter to overcome the Mitsubishi Zero's dominance in the Pacific theater. Grumman installed the Pratt & Whitney R-2800 Double Wasp 2,000 hp estimating a 25% increase in performance would result. The first, Cyclone-equipped prototype (02981) flew on 26 June 1942 while the first Double Wasp-equipped aircraft, the XF6F-3 (02982) had its first flight on 30 July 1942. Proposed at the same time as the first Hellcat prototypes, the XF6F-2 incorporated a turbo-supercharger but performance gains were only slight and until fleet demands for improvements in speed, this variant, along with the two-speed supercharger-equipped X6F-3, languished. However, later F6F-4 and F6F-5 variants did benefit from these initial development programs. Like the Wildcat, the Hellcat was designed for ease of manufacture and ability to withstand significant damage. A total of 212 lb of cockpit armor was fitted to aid pilot survival, as well as a bullet-resistant windshield and armor around the engine oil tank and oil cooler. Self-sealing fuel tanks further reduced susceptibility to fire and often allowed damaged aircraft to return home. The US Navy's all-time leading ace, Captain David McCampell USN (retired) scored all his victories on the Hellcat. He once described the F6F as " outstanding fighter plane. It performed well, was easy to fly and was a stable gun platform. But what I really remember most was that it was rugged and easy to maintain." The first production aircraft off the line, designated F6F-3s, flew on 3 October 1942 with the type reaching operational readiness with VF-9 on USS Essex in February 1943. Instead of the Wildcat's narrow-track undercarriage retracting into the fuselage requiring awkward hand-cranking by the pilot, the Hellcat had hydraulically-actuated undercarriage struts set wider and retracting backward, twisting through 90° into the wings. The wing was low-mounted instead of mid-mounted and folded the same way as the later versions of the Wildcat, allowing the Hellcat to take on a compact, tucked-in Grumman F6F Hellcat  pair  in flightappearance on a flight deck. Standard armament on the F6F consisted of six .50 caliber (12.7 mm) Browning machine guns with 400 rounds each; later aircraft gained three hardpoints to carry a total load in excess of 2,000 lb. bombs. The center hardpoint also had the ability to carry a single 150 U.S. gallon disposable drop tank. Six 5 in. (127 mm) HVARs (High Velocity Aircraft Rocket) could be carried; three under each wing. The next and most common variant, the F6F-5, featured improvements such as all-metal control surfaces, replacement of rear windows with armor, improved visibility through the windshield, and numerous other minor advances. Another improvement in the F6F-5 was the availability of more potent armament than the standard six .50 caliber (12.7 mm) machine guns. Trials with cannon-armed Hellcats were not followed up by a production version, although the armament mix of a pair of Hispano 20 mm (0.79 in.) cannon carrying a minimum effective load of 220 rounds each, along with two pairs of .50 caliber (12.7 mm) machine guns; each armed with 400 rounds was later used on many F6F-5N night fighters. All production F6F-5s had the ability to be fitted with the different armament configurations, but only F6F-5N night-fighters, equipped with radar, ever used the latter gun fit. Two F6F-5s were fitted with the 18-cylinder 2,100 hp Pratt and Whitney R-2800-18W two-stage blower radial engine which was also used by the F4U-4 Corsair. The new Hellcat variant was fitted with a four-bladed propeller and was called the XF6F-6. The aircraft proved to be the best performer in the series with a top speed of 417 mph. Plans for mass production of this variant were cancelled with the advent of VJ day. The last Hellcat rolled out in November 1945, the total production figure being 12,275, of which 11,000 had been built in just two years. This impressive production rate was credited to the sound original design, which required little modification once production was underway.

Grumman F6F Hellcat  Two viewOperational service:
The Hellcat first saw action against the Japanese on 1 September 1943 when fighters off the USS Independence (CVL-22) shot down a snooping seaplane. Soon after, on 23 November, Hellcats engaged Japanese aircraft over Tarawa, shooting down a claimed 30 Mitsubishi Zeros for the loss of one F6F. Over Rabaul, New Britain, on 11 November 1943, Hellcats were engaged in day-long fights with many Japanese aircraft including A6M Zeros, claiming more than 100 victories while losing few F6Fs. The "Thach Weave" had developed into a formation tactic by that time. Each time an enemy fighter made a run at a section of US fighters, the pursued Hellcats would break towards the opposing formation who would cross over and force the Japanese to break off or expose themselves to the Hellcat's weapons. Hellcats were involved in practically all engagements with Japanese air power from that point onward. Navy and Marine F6Fs flew 66,530 combat sorties (45% of all fighter sorties of the war, 62,386 sorties were flown from aircraft carriers) and destroyed 5,163 enemy aircraft (56% of all Naval/Marine air victories of the war) at a cost of 270 Hellcats (an overall kill-to-loss ratio of 19:1). The aircraft performed well against the best Japanese opponents with a 13:1 kill ratio against Mitsubishi A6M, 9.5:1 against Nakajima Ki-84, 28:0 against Kawanishi N1K-J, and 3.7:1 against Mitsubishi J2M during the last year of the war. In the ground attack role, Hellcats dropped 6,503 tons of bombs. The F6F became the prime ace-maker aircraft in the American inventory, with 306 Hellcat aces. It was the major U.S. Navy fighter type involved in the Battle of the Philippine Sea, where so many Japanese aircraft were shot down that Navy aircrews nicknamed the battle The Great Marianas Turkey Shoot.


Grumman F6F Hellcat  -Wayne White


Argentine Navy
Aviation Naval
United Kingdom
US Navy
US Marine Corps
Uruguayan Navy

The F6F accounted for 75% of all aerial victories recorded by the U.S. Navy in the Pacific. Radar-equipped Hellcat night fighter squadrons appeared in early 1944. The British Fleet Air Arm received 1,263 F6Fs under the Lend-Lease Act and dubbed it Gannet. The name Hellcat was eventually retained for the sake of simplicity, with the F6F-3 being designated Hellcat F I, the F6F-5, the Hellcat F II and the F6F-5N, the Hellcat NF II. They saw action off Norway, in the Mediterranean, and in the Far East. Initially known as the "Gannet" in Fleet Arm Arm service, however, this name was discontinued in early 1943, and the Hellcat name used instead. FAA Hellcats were rapidly replaced by British aircraft after the end of the war. After the war, the Hellcat was eclipsed in performance the Grumman F8F Bearcat that was developed during the war, but did not make to theatre in time to see any action. The Hellcat soldiered on in a number of second-line duties including training. The French Aéronavale was also equipped with F6F-5 Hellcats and used them in Indochina. The Uruguay Navy also used them until the early 1960s.

Grumman F6F Hellcat Canopy Grumman F6F Hellcat Nose Grumman F6F Hellcat front view

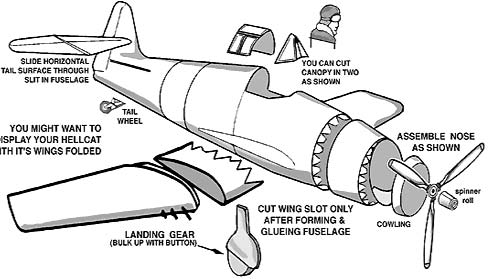

Grumman F6F Hellcat  Assembly Drawing

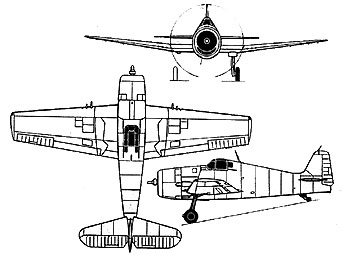

Grumman F6F Hellcat-threeview

Length: 33 ft 7 in
Wingspan: 42 ft 10 in
Height: 13 ft 1 in
Wing area: 334 ft²
Airfoil: NACA 23015.6 mod root; NACA 23009 tip
Empty weight: 9,238 lb
Loaded weight: 12,598 lb
Max takeoff weight: 15,415 lb
Powerplant: 1× Pratt & Whitney R-2800-10W "Double Wasp" two-row radial engine
with a two-speed two-stage supercharger, 2,000 hp
Propellers: 3-blade Hamilton Standard
Propeller diameter: 13 ft 1 in
Fuel capacity: 250 US gal internal; up to 3x 150 US gal external drop tanks
Zero-lift drag coefficient: 0.0211
Drag area: 7.05 ft²
Aspect ratio: 5.5

Maximum speed: 380 mph
Stall speed: 84 mph
Combat radius: 945 miles
Ferry range: 1,530 mi,
Service ceiling: 37,300 ft
Rate of climb: 3,500 ft/min
Wing loading: 37.7 lb/ft²
Power/mass: 0.16 hp/lb
Time-to-altitude: 7.7 min to 20,000 ft
Lift-to-drag ratio: 12.2
Takeoff roll: 799 ft

6× 0.50 in (12.7 mm) M2 Browning machine guns, 400 rounds/gun, or
2× 20 mm cannon, 225 rounds/gun
4× 0.50 in (12.7 mm) Browning machine guns 400 rounds/gun

6× 5 in (127 mm) HVARs or
×11¾ in (298 mm) Tiny Tim unguided rockets
4,000 lb of ordnance, including:
1× 2,000 lb bomb or
1× Mk.13-3 torpedo under the centerline
1× 1,000 lb or
2× 250 lb
6× 100 lb


Grumman F6F Hellcat

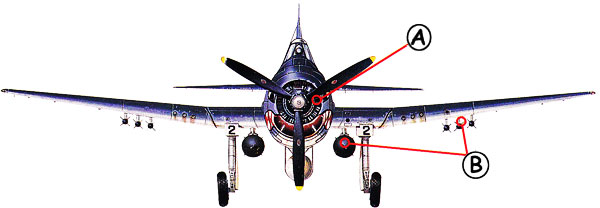

A: The F6F was powered by the 18-cylinder Pratt & Whitney Double Wasp engine, one of the largest piston powerplants available during World War II. B: This VF-27 fighter is armed for a ground-attack mission, with bombs and 5-inch high- explosive rockets.


Grumman F6F Hellcat

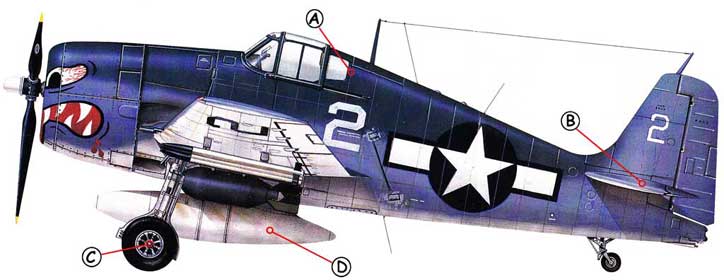

A: The Hellcat was very well built. For added protection, it was equipped with self-sealing fuel tanks and a tough sheet of armor to protect the pilot. B: Like the rest of the fighter, the undercarriage was extremely tough, to withstand repeated carrier landings. C: The fin and tailplanes were built around very strong central spars. The aircraft itself was amazingly durable and could survive substantial battle damage. D: On internal fuel, the F6F had a combat radius of 500 miles, but this could be more than doubled by using external tanks.


Grumman F6F Hellcat Crash
Grumman F6F Hellcat Crash
