Mig-29 Fulcrum - $4.50

Mig-29 FulcrumThe Mikoyan MiG-29 is a 4th generation jet fighter aircraft designed in the Soviet Union for an air superiority role. NATO’s reporting name for the MiG-29 is "Fulcrum", which was unofficially used by Soviet pilots in service. It was developed to counter new American fighters such as the F-16 Fighting Falcon, and the F/A-18 Hornet.

MiG-29 Fulcrum Downloadable Cardmodel

MIG-29 Fulcrum Russian Jet Fighter

MiG-29 Fulcrum


MIG-29 Fulcrum outstanding Russian Jet FighterThe MiG-29 is marketed worldwide and equals or surpasses the F-15C in several areas. It is a widely exported aircraft, flown by Iraq, Iran, North Korea and Cuba.



The MiG-29 has a few advantages over its more electronically advanced American counterparts. At about 40 miles apart, the American planes have the advantage because of avionics. At 10 miles the advantage is turning to the MiG.



At five miles out, because of the MiG weapons sight and better maneuverability, the advantage is to the MiG. The weapons sight is a helmet-mounted system that allows the missile to follow the line of sight of the pilot's helmet. Where the pilot looks is where it goes.





What people say...

Someone from our command ordered the Jets &Aerospace CD. We are making the Soviet aircraft models for visual aids dealing the Aircraft threat recognition. The detail is just terrific. The Mig-29, the SU-27, and the other aircraft are just terrific. J. E. Thompson USMC


Hi there! In the description of the real aircraft, it's told that the Mig-29 can do the "Cobra ". However as far as I know, the only aircraft that can do this maneuver are the similar looking SU-27 Flanker. The planes do look similar, but the Su-27 is just a bit little bigger. Not much though..

However other than that , I must say that I enjoy your site, and have bought and downloaded a few of your models. But just a couple of days ago, I ordered your Jets/Aerospace collection cd :). So,in the near future,my ceiling will filled with "flying" airplanes, Thanks !! With best regards ..Kenneth Benjaminsson, Sweden

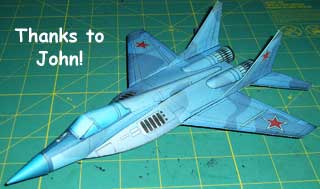

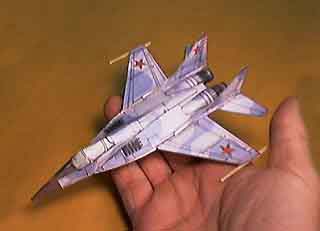

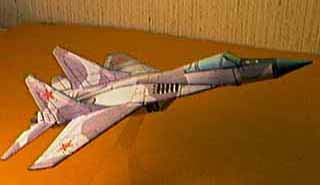

Mig 29 displayed on plastic stand MiG-29 Model



MIG-29 Information

MiG-29 Fulcrum

MiG-29 FulcrumAcross the skies of Eastern Europe, the airborne battle rages. At stake is control of the air; without it, control of the ground is impossible. In the hundreds of brittle skirmishes, victory sometimes goes to the invader and sometimes to the defender. But in the end and at great cost, the invasion slows and finally stops and turns away-defeated by a huge 'combined arms" army-and another chapter is written of the long history of Russia turning back invaders.

This preceding scenario is, of course, pure fiction, and Soviet fiction at that. As unlikely as it may seem to us in the West, there was a real fear by many, at all levels of Soviet society, of a NATO-initiated war with the Warsaw Pact.

Luckily, despite four decades of tension and conflict, the forces of NATO and the Warsaw Pact never engaged in actual direct combat. And now, the Soviet Union is itself gone, replaced by the Commonwealth of Independent States.

But this scenario certainly does represent what Soviet planners thought could have happened; it reflected one contingency of many and what the Warsaw Pact planned for in the event of a shooting conflict with NATO forces. Many billions of dollars, rubles, pounds, Deutchemarks, and lira were invested in preparing for World War III. And while the idea of an invasion of the Soviet Union and the other members of the Warsaw Pact might seem ridiculous to us, it certainly seemed plausible to the Russians. And with many good reasons; they've been invaded and threatened with invasion for centuries.

Weapons systems such as the ones on the MiG-29 are only small components of massive, complicated, and expensive strategic plans for things that might happen. The MiG-29 is one extension of the commitment of the Soviet Union to be able to fight any adversary in the future, because they have had to deal with so many adversaries in the past. Russian history-and that of the other republics, as well-is dominated by a recurrent theme of invasions by the Germans, French, Swedes, and Asians, and wars with all possible neighbors. Russian history is full of military disaster and economic victimization. The Mongol hordes rampaged through early Russia, and Nazi Germans did the same just a few decades ago. While the United States and the Soviet Union were both victims of surprise attacks at the outset of World War II, we lost half a million men in battle, but the Soviets lost 27 million men, women, and children to combat and starvation and disease. The experience was just another chapter in their history, nothing really new But World War II's awful cost inspired Soviet society to ensure that the next invasion would be met with an unbeatable military establishment.

The Soviets learned many lessons during what they call the "Great Patriotic War," the most important of which was to prepare for worst-case scenarios. Another is that a lot of good weapons systems are better than a few excellent weapons systems, and that battles may be won by good defense, but wars are won by good attacks. The Soviets have incorporated all these lessons in their combat aircraft, particularly the marvelous MiG-29.MiG-29 Fulcrum Taxi

Now that the Soviet Union is gone and the paranoia of the Cold War with it the peoples of Russia, Ukraine, Georgia, and all the other independent republics of the Commonwealth still feel threatened. When I visited Kubinka in October 1991, several MiG-29 pilots made the point of saying that they were not worried about any threat from the West-but they were sincerely worried about having to fight forces from breakaway republics as established order deteriorated. The threat of war among the republics is real, and the MiG pilots know that they're a first line of defense in any kind of skirmish. So, even with the threat of war with NATO gone, the MiG still has a role to play, a mission to perform.

The MiG-29 is an "air superiority" fighter aircraft, which means that its principal mission is to control the skies within its combat radius. According to the Mikoyan design Bureau (0KB), its basic missions include 'counter-air" or fighter versus fighter engagements, close air support, and counter-air reconnaissance, day or night, in any weather.

The Fulcrum is equipped for a day only, clear-weather close air support role, but it has extremely accurate systems for delivering weapons against point targets (such as a tank or a bridge) or area targets (typically, troops in the open).

It has the systems to effectively engage other fighters at long, intermediate, and close ranges, and includes a fire control system that gives a trained and motivated pilot some tactical advantages not available to fighters from other nations. It carries a look-down, shoot-down radar that can pick targets out from the ground clutter. It has a digital data link that provides secure, reliable communications with ground command-and-control facilities. It carries an integrated fire control system that automates separate weapons systems and targeting devices. Its weapons systems are known to be extremely effective; the cannon-and-laser-rangefinder system is said to guarantee a kill on any target in range with no more than five rounds.

The MiG-29 airframe-powerplant combination was intended to be superior to any other contemporary fighter; it has a thrust-to-weight ratio of better than 1:1, which means that it can accelerate while flying straight up while carrying a normal combat load. And it can pull 9gs and more, for as long as the pilot can stand it. The airframe will take l2gs without bending, even though no pilot can do the same.

The plane is agile in ways that only counter-air combat aircraft need to be: You can control it easily when it's going very fast or very slow, up or down, straight and level or squirming in a gunfight. It can perform combat maneuvers that Western fighters can't duplicate, and is considered by some Western experts to be superior in Important ways to anything else in the air.

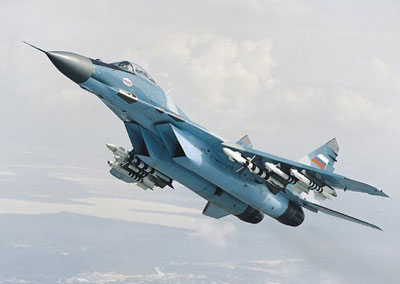

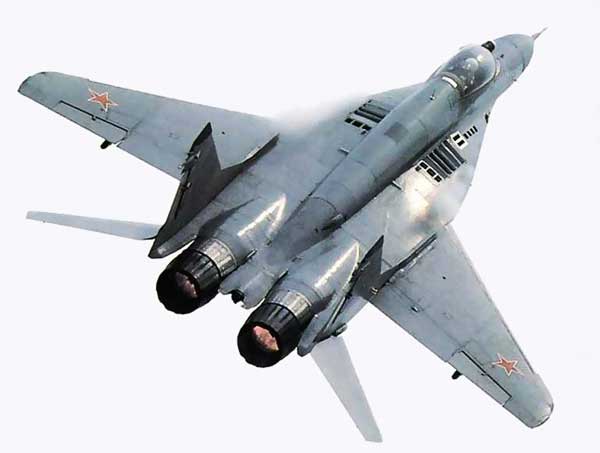

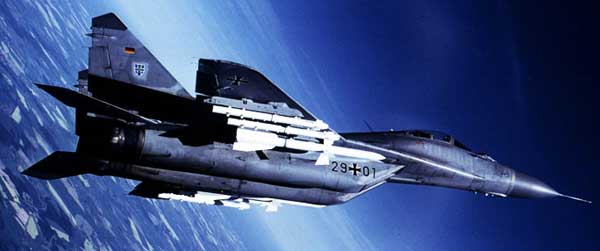

MiG-29 Fulcrum In FlightIt is intended to be able to identify engage, and defeat any contemporary fighter or bomber-and it probably can, often without being detected itself. It is a simple, strong, elegant, and sophisticated combat aircraft intended to be easy to maintain under the most austere conditions and with the most minimal of facilities. It doesn't need a runway or a hangar; a dirt road will serve for landings and all maintenance is done in the open air.

The MIG'S fire-control system, with its IRST system, powerful look-down shoot-down radar, laser rangefinder, extremely accurate 30mm cannon, and helmet-mounted sight, are all integrated into a package that is extremely effective and unique. The MiG-29 can carry three kinds of missiles, all state-of-the-art, and it can carry them at better than Mach 2, around 1500mph.

Like many Soviet weapons systems, the MiG has been slandered and belittled by Western media reports-until the reporters got a good look at. it. Until the MiG-29 visited Finland, it was criticized for a variety of imagined flaws and faults. Since then, many Western military and aerospace industry experts have been able to see the MiG perform, and what they have seen is a set of capabilities unmatched by any combat aircraft in any air force.

Although the Fulcrum (as NATO calls it) appeared earlier, the 1988 visit to the Farnborough Air Show in Great Britain was the first real opportunity Western aviation analysts had to see the mystery fighter up close and doing its stuff. The reaction was one of surprise, for several reasons. One of the reasons was the candor of the Soviet, pilots and technical experts who accompanied the aircraft, offering a wealth of detail about the fighter's systems and capabilities that had previously been classified state secrets. Not only was the technical information surprising, but the Soviets themselves surprised the journalists and military analysts with their charm and goodwill. After four decades of adversarial relations, the visit and the visitors did a lot to start a process of improving relations between the NATO forces and those of the Warsaw Pact. But the real thrill came when the MiG's flew what one aviation magazine called a stunning" display.

When the two aircraft visited Farnborough in 1988, it was an unprecedented opportunity to study an aircraft that had been, until then, a major mystery. The visit began as the flight entered British airspace: a pair of Tornados formed up alongside to provide escort service. Waiting on the ground were crowds of aviation enthusiasts from many nations and many specialized interests, including a minor intelligence-gathering effort by British and American teams using airborne and ground data collection devices. Every second the aircraft were aloft was recorded on videotape and thousands of photographs were taken. And, when the airplanes were safely parked and the pilots were formally greeted, interviewers for news magazines, radio, television-and the military intelligence community- interrogated the pilots and support personnel.

The planes were flown by Anatoly Kvotchur and Roman Taskaev, both highly accomplished test pilots from Mikoyan; Yuri Ermakov navigated. Accompanying them in an Aeroflot transport were a team from Mikoyan 0KB, including Chief Designer Mikhail Waldenberg and Alexander Velovich, an avionics designer providing translation services.

The Russians surprised the crowd with their charm, candor, and, especially, their aerial display. It began with a full burner takeoff, the MiG becoming airborne in only 750ft. That impressed the crowd, but what really shocked many of them was that the engine inlet doors stayed solidly closed during the entire run.

As soon as the wheels left the concrete, the nose of the jet was smoothly rotated straight up, and the MiG accelerated in a vertical climb and then continued to pull back into a loop that topped out at about 2,400ft. At the bottom of the loop, the MiG was started right back up again, but this time the power was chopped and the airspeed decayed until the fighter hung motionless in the air before sliding backward for a short distance. The pilot applied power at this point, pushed the nose back toward the horizon where it normally belongs, and-still completely in control-brought it back for more. MiG-29 Fulcrum

This time, the MiG made a pass at low speed, only 110 knots, and extreme angle-of attack (alpha), about twenty-five units of alpha, still in complete control. Then, the Fulcrum accelerated, pulled up to the vertical, and came back for another go, this time with the wings held vertical in a "knife-edge" pass. During the knife-edge maneuver, the aircraft was accelerated from about 270 knots to more than 450 knots. This was followed by a series of Cuban Eights and extreme turns, and then a roll into the landing pattern. While inverted, the gear were extended, and while still airborne (just a few feet above the ground the braking parachute was deployed with a loud pop, and the MiG-29 was back on terra firma.

This display shot down a lot of notions about Soviet aircraft and airmen. The tail slide maneuver showed that the fighter was extraordinarily controllable under the most extreme of flight conditions and that the engines were far more capable than expected-and in the resistance to stall in the slide perhaps were superior to those of any manufacturer. After years of being disparaged by the Western media, the MiG was revealed to be an aircraft with performance equal to or better than anything else in the air It did things no NATO fighter would attempt near the ground, if at all. It appeared to be controllable and agile both at high speeds and while hovering almost motionless in the air. In addition, the aircraft was simple (or at least as simple as a contemporary fighter can be), reliable, and designed to be operated from austere facilities when required.

The MiG-29 is certainly one of the most important fighter aircraft currently available. But like its contemporaries, whose designs came off the drawing boards in the 1960s and 1970s, the MiG-29 has its limitations and restrictions. Even its designers say its cockpit is crowded and complicated and makes the pilot's combat workload heavier than newer designs. Its flight control system uses hydraulics and mechanical linkages rather than the newer digital fly-by-wire technologies that help make such fighters as the F-15E Strike Eagle so much more agile. The airframe has limitations and flaws, like any aircraft's. But, as Canadian Air Force pilot Major Bob Wade said after flying it, "The Western pilot would be wise to detect and shoot at the MiG-29 from a distance using his high-technology weapons system, because if it comes down to a close encounter with infrared missiles or guns, a good Soviet pilot is a definite threat." (Aviation Week, February 26, 1990)

MiG-29 Fulcrum




MiG-29 Fulcrum

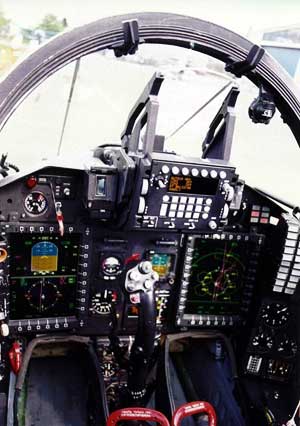

MiG-29 Fulcrum Cockpit.

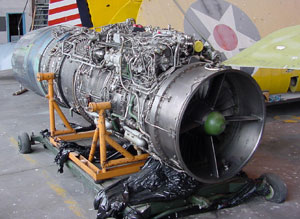

MiG-29 Fulcrum Engine
MiG-29 Fulcrum Engine.

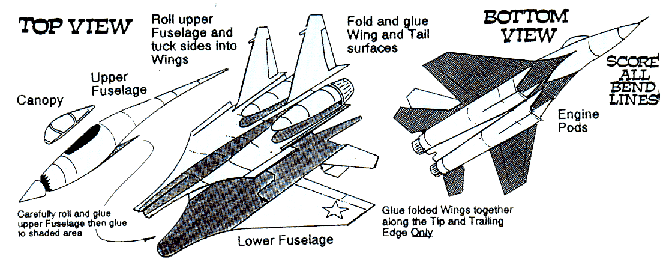

MIG-29 Fulcrum Assembly

Specifications for the MiG-29 Fulcrum

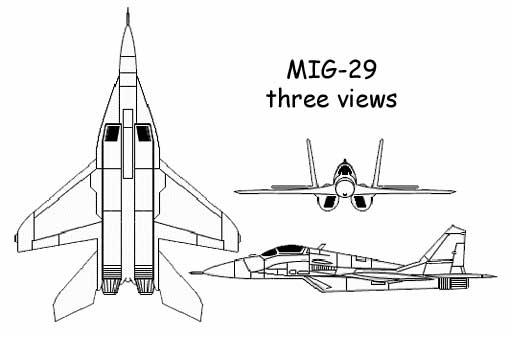

MIG-29 Fulcrum 3vu
Length: 57 ft
Wingspan: 37 ft 3 in
Height: 15 ft 6 in
Wing area: 409 ft²
Empty weight: 24,250 lb
Loaded weight: 37,000 lb
Max takeoff weight: 46,300 lb
Powerplant: 2× Klimov RD-33 afterburning turbofans, 18,300 lbf each

Performance

Maximum speed: Mach 2.25 (1,490 mph)
At low altitude: 930 mph
Range: 430 mi
Ferry range: 1,800 mi with 1 drop tank
Service ceiling: 59,100 ft
Rate of climb: initial 330 m/s average 65,000 ft/min
Wing loading: 90.5 lb/ft²
Thrust/weight: 1.01

Armament

1x 30 mm GSh-30-1 cannon
with 100 rounds
Up to 7,720 lb of weapons including six
air-to-air missiles — a mix of semi-active
radar homing (SARH) and AA-8 "Aphid",
AA-10 "Alamo", AA-11 "Archer", AA-12
"Adder", FAB 500-M62, FAB-1000, TN-
100, ECM Pods, S-24, AS-12, AS-14.

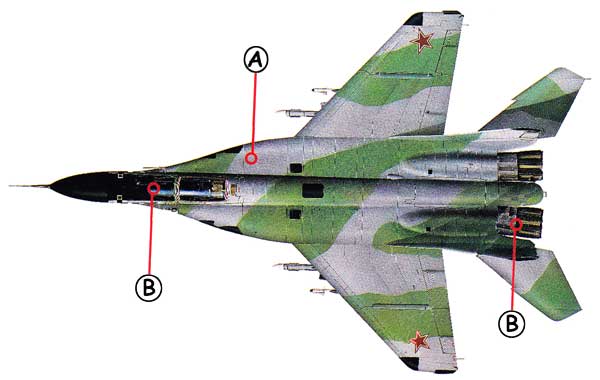

MiG-29 Fulcrum Callout Top
A: The MiG-29's wing and leading-edge extensions were designed at TsAGI, the Soviet equivalent of NASA. They are extremely efficient aerodynamically and contribute to the "Fulcrum's" superb performance. B: The carrier version of the MiG-29 is thought to be based on the advanced "Fulcrum-M," with more powerful engines, improved radar and avionics.

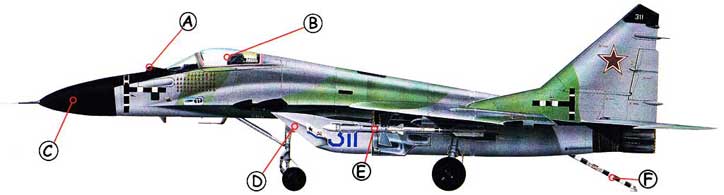

MiG-29 Fulcrum Callout

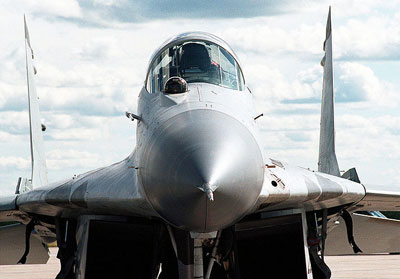

A: The ball in front of the MiG-29's cockpit houses the laser and infrared sensors of the infrared search and track system. B: Although the "Fulcrum" has a much less obstructed view from the cockpit than previous Soviet designs, it does not match Western rivals such as the F-15 and F-16 when it comes to pilot visibility. C: The MiG-29's radar is a multimode lookup/ lookdown system. lt is extremely powerful, although data handling is a little less sophisticated than in the latest Western systems.
D: MiG-29s are fitted with shields for their air intakes that close when the aircraft is on the ground. This design prevents debris from entering the engines in rough-field operation. E: Standard weapons on the MiG-29 include the AA-10 "Alamo" for beyond-visual-range engagements and the exceptionally agile heat-seeking AA-11 "Archer" for dogfights. F: The carrier-capable MiG-29K is fitted with folding wings and an arrester hook.



MiG-29 Fulcrum Crash
