Minimoa Sailplane - $8.50

It was made out of wood and fabric with cantilevered 'gull' wings. A B-version in 1938 had thinner wings with a modified section and the gull's kink in a different place. The undercarriage was non-retractable. It was the first glider built to carry water-ballast in a tank behind the pilot.

Legendary Minimoa Sailplane Downloadable Cardmodel

The Legendary Minimoa 1930s Sailplane

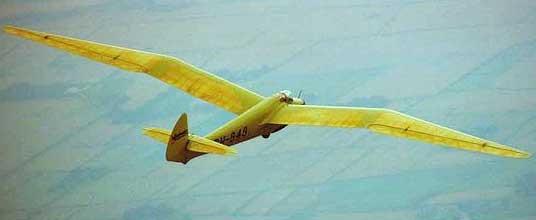

Minimoa In Flight

Wolf Hirth's Moazagol
The Minimoa with its amazing silhouette, it’s probably one of the most reproduced vintage gliders these days, but it still remains a curiosity. It symbolizes the 30’s of the German soaring. It was for many of us a technological marvel which helped many pilots quit the slope flying and explore the thermal or even the wave soaring. It was a big step from experimental soaring to pure sport flying. Its shorter 17 meter span cut costs while its stronger structure allowed higher speeds.


The Minimoa was one of the first realization of the young company Göppingen Segelflugzeug-bau born in 1935 when Wolf Hirth and Martin Schempp teamed up. Renamed Schempp-Hirth Segelflugzeugbau after the war, they are today one of the most famous and largest glider manufacturer.



What people say...

Beautiful glider - there is a reason VSA put it in the middle of their logo. "Gull wing" vintage gliders are a big deal. Beautiful and a bit more complex, they mark an especially elegant era in soaring. Then the aerodynamicists proved that there was no significant performance benefit from the gulled section of the wing, and we've been flying straight winged gliders ever since. Pity. Cam


I 'joined' a few months ago and have delighted in not only making the models with my son but also reading the background materials. I find myself looking forward to Friday afternoon to see what the latest model will be. Don't worry about going to a two-week schedule - these models are worth the wait. Regards, Bruce Chochino, Toronto, Ontario.
Howzit,, Liking the gliders, d--n HUGE!! Niki

On my build, the wing tip spar box is not a snug fit into the wing structures. If we do not glue the wing tip spar; doesn't it just flop around inside the wing? Since the wing tip attachment to the wing is already nicely established by the wing envelope design, of what use is the tip spar? Bob Penikas
Bob, We tried to get the sparlet and the wing sheath to fit tightly.. We glued it at first but it left an ugly glue shrink-up on the wing.. I figure the wing will start to sag someday and that bit of support will help..
The outer ones helped to keep the gull shape as well as strengthen the outer wing.. Did you 'feel' the strength with your Minimoa?
chip




Minimoa-model

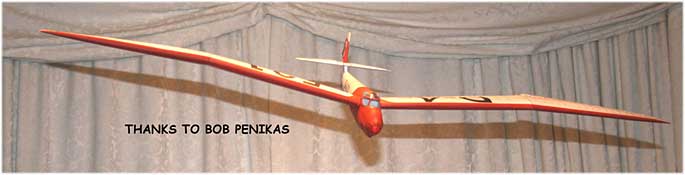

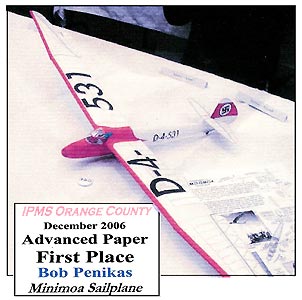

The Minimoa model has a span of 38 inches!! Look at how Bob's ailerons are working. We altered the fuselage red color lines a little to keep the solid white aft fuselage. Bob entered his Minimoa cardmodel in the Orange County (Ca) 'International PLASTIC Model Society' contest and guess what??

Minimoa-Sailplane



Minimoa 1930s Sailplane

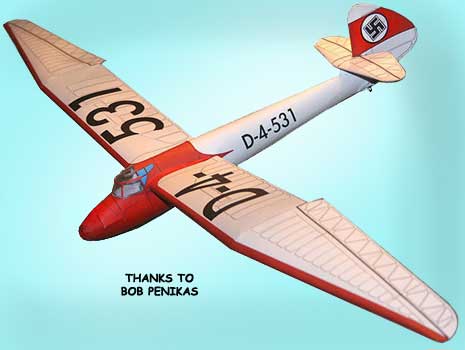

Bob's Minimoa

Wolf HirthTo retain the stability and safe handling of the Moazagotl, the new sailplane had the same general features, a swept back wing with pronounced gull dihedral, large ailerons and strong washout, mounted high on the fuselage. When seated, the pilot's head was inside the wing, so outward vision was not good. A window in the roof helped a little. Landings would be on a skid. Split flaps were installed beneath the wing to aid landing in small spaces.

Because of his artificial leg, Hirth (right) had the controls set up with an overhanging control column working a torque tube which passed over his right shoulder to bell cranks in the wing root. The entire top front of the fuselage lifted off to allow him to get in and out. This was not to continue with production aircraft however.

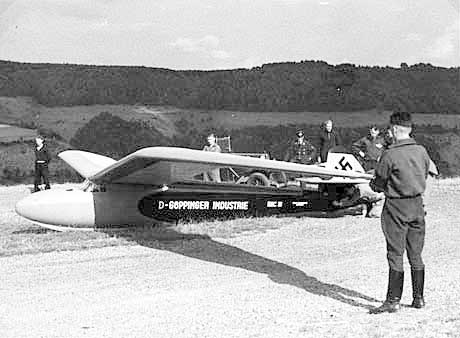

This unusual prototype flew in 1935 and was taken to the Rhon meeting. A smaller version of the Moazagotl, was named the Minimoa. The first Minimoa accompanied Hirth when he visited Japan to demonstrate and promote soaring later in 1935, and was sold there. A second prototype was built, with a landing wheel and normal controls. This too went to Japan later. One more of the high winged version was built and sold to a Romanian pilot.


After this there was some substantial redesign before production began. The wing was mounted lower on the fuselage with a new, much improved cockpit canopy giving the pilot a better view.

The tail unit also was redesigned with a fixed tail plane instead of the all moving elevator of the prototypes. Various sizes and types of rudder were tried at different times.

The landing flaps were replaced by spoilers and eventually, on later models, air brakes.


Minimoa-Sailplane

Minimoa Glider Sailplane
This is a photo of the Fiddlersgreen version of the Minimoa. The red band around the swastika was used on civilian aircraft in the 1930s and 40s.

Minimoa-view
Minimoa-front
Minimoa-top

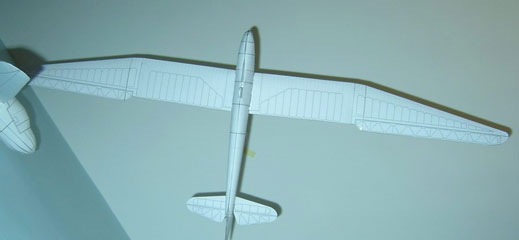

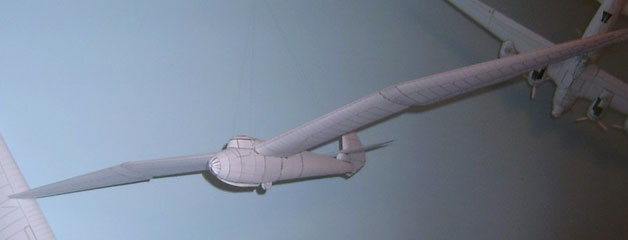

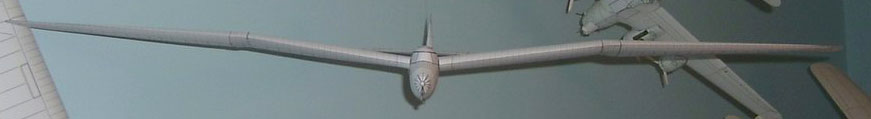

Three views of Kancho's Minimoa beta build-Sept '05. This has been over a year in the making

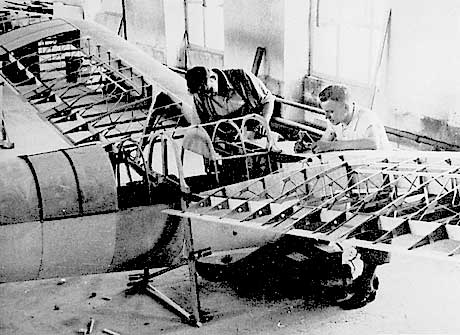

Minimoa Construction

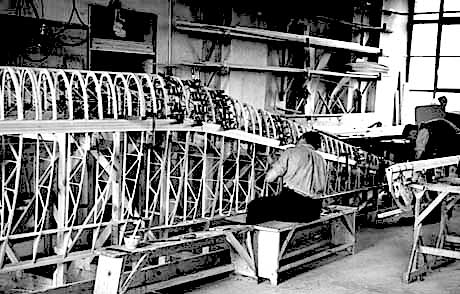

Minimoa Construction
Minimoa

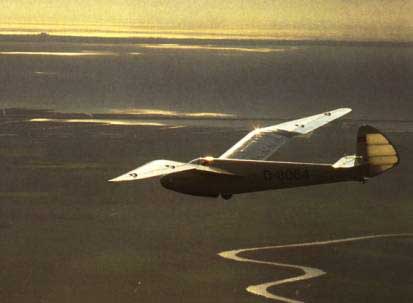

Minimoa at dusk
Easy to follow, -and pretty enough to hang on your wall- instructions come with every FG model

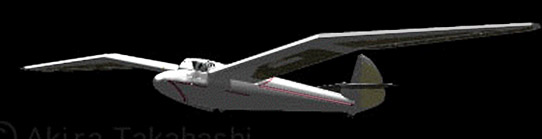

Minimoa model in flightMinimoa Model

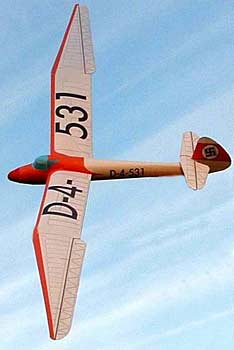

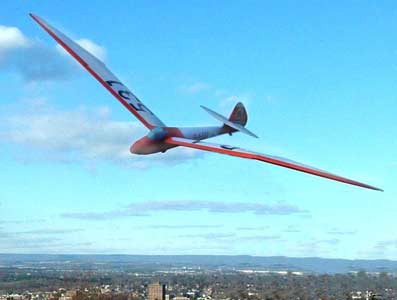

I'm sending two Minimoa photos along. The first is very similar to Bob Penikas' shot, the other was taken at Lehigh University's lookout over Bethlehem, Pa. Dick Doll


Flying minimoa sailplane glider

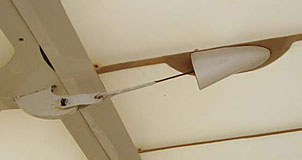

MInimoa-control hornMinimoa-canopy
Painting detailsMInimoa-front
MInimoa-starboard

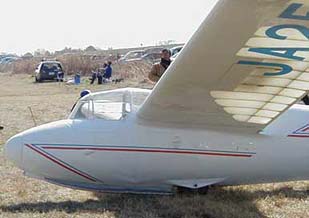

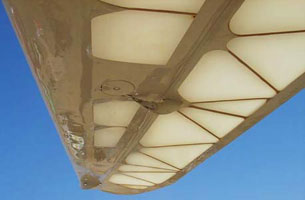

MInimoa-port sideMInimoa-wingtip
MInimoa-tail
Tail with Japanese markings

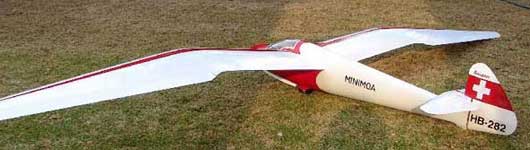

Minimoa-SwissMInimoa-Swiss
Minimoa-Swiss markings
These last three images are of a Minimoa RC model

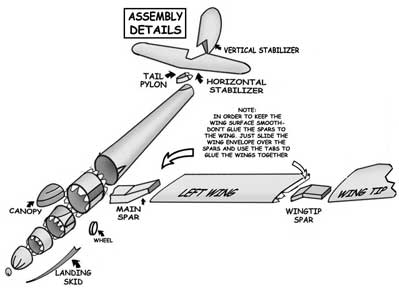

Assembly Details for the MInimoa Sailplane

Minimoa Sailplane Specifications

Minimoa-Sailplane
Length: 22 ft 11.5 in
Wingspan: 55 ft 9 in
Wing area: 204.9 ft²
Empty weight: 539 lb
Max takeoff weight: 770 lb
Wing profile (airfoil): Go 681, 693

Performance

Maximum speed: 136 mph
Wing loading: 3.75 lb/ft²
Minimum sink: about 2 ft/s at 37 mph
Glide ratio: 28:1 at 45 mph
