Wedell-Williams - $5.95

The Wedell-Williams landing gear had no shock absorbers and the shock of landing was absorbed by the tires. The aircraft had very little forward visibility, and this has been confirmed by pilots flying replica's. The #121 had the gear set at an angle.

Wedell-Williams Racer downloadable cardmodel

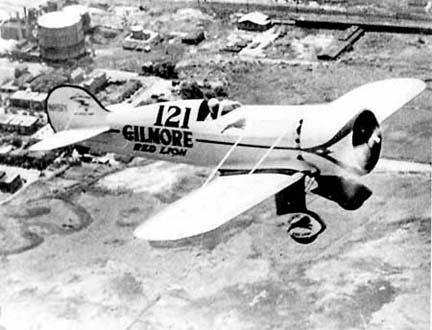

The Wedell-Williams Gilmore 121 Monoplane Racer

Wedell-Willams Racer

Wedell-Williams Gilmore Jimmy Wedell was a genius at designing racing aircraft, once building (with his crew) THREE new planes in just three months. Legend has it that he would draw the primary drawings with chalk on the workshop floor.


This model is one of the prettiest of all 1930s racing planes and is a good example of the design of the times.


You'll see the same great graphics on the Bull Dog, Cessna CR3 and several others in the 1930s Racing Collection.

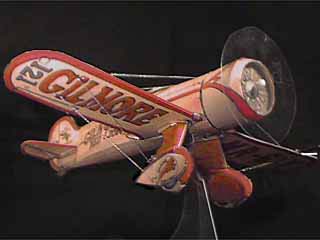

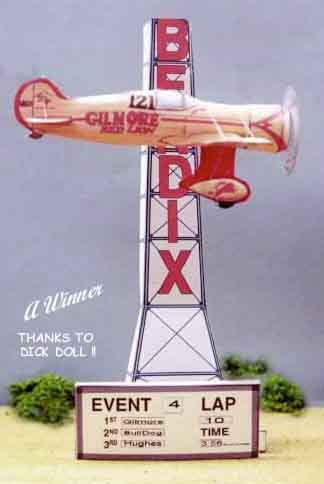

The model to the left was sent in by Doc Rowland and has our thanks. It's included on our Fiddlers Green CD.




What people say...

A fun little build. the wheel skirts was a trip. The clear canopy really makes the difference. YMP Bob

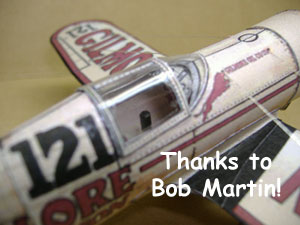

Clear Cabin Wedell-Williams Racer

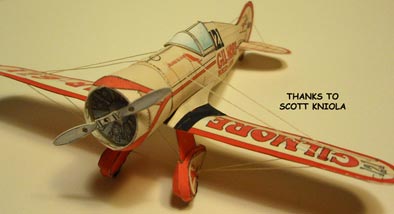

Wedell-Williams cardmodel



Thanks to you and all of your contributors at Fiddlers Green. In the past month I have built about 20 models (much to my wife's chagrin).

I love to build them and my children love to fly them, and now anytime I pick up scissors or an hobby knife my 2 year old begins to inquire "my plane?" Thank you again..Scott

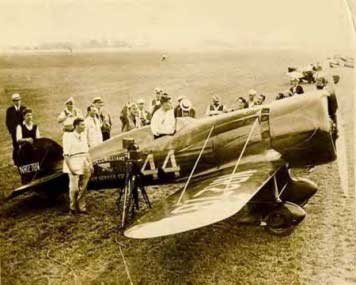

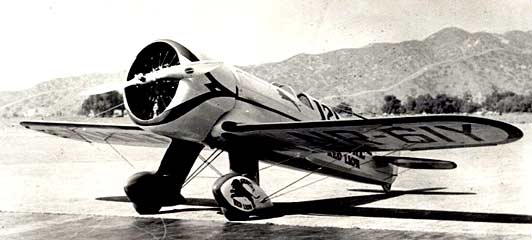

Here is a photo (right) of the Wedell-Williams model 44 that is useful for finding the bracing wire positions.

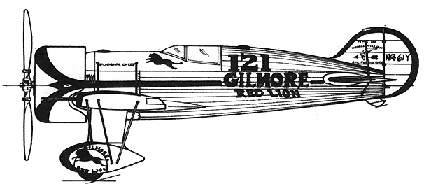

Wedell-Williams Gilmore Racer


Wedell-Williams Airplanes

Wedell-Williams Racer GilmoreJIMMY WEDELL (PRONOUNCED WE-dell) who had only a ninth grade education, couldn't read a blue print and was denied Army and Navy pilot training, not only became one of the great race pilots of the country, but also one of the greatest and most prolific designers and builders of racing aircraft. During the period 1931 to 1936 the Wedell-Williams race jobs took more than their share of firsts Second. third and fourth places were also filled by Jimmy's speed steeds.

Born in Texas City. Texas on March 31, 1900, James Roben Wedell's father. a bartender on the tough water front) and his mother died when he and his younger brother, Walter, were infants. Thus, from the start, the two brothers were on their own. Jimmy was very interested in gasoline engines and at an early age started working for an auto mechanic. Later using a 10 ft. x 10 ft. building, he opened his own garage. Granted this was not large enough to get the flivvers in. but the rent was cheap and Jim was able to work on the auto outside the building.

During the same period. Walter became a telegraph operator for the railroad. Despite the difference in jobs. when the two brothers got together. aviation and flying were the main topics of conversation. Finally, Jim scraped together enough money and purchased two old Thomas Morse airplanes. Both planes were basket cases and needed r rebuilding. But Jim met the challenge, rebuilt them and then had Francis Rust, an old barnstormer, give him one hour of flight instruction. From this point forward Jim and the Thomas Morses were on their own.Wedell-Williams-Gilmore

He taught Walter to fly and the two barnstormed throughout the Gulf Coast area. But money was scarce and Walter joined the Navy as a telegraph operator for a four year hitch. At this point, Jimmy traveled south into Mexico and became known as the "Air-Hobo" from Texas.

He had lost the sight of one eye during his youth, the accident occurring during a wild motorcycle ride, but Jim continued with life just as if he had the sight of both eyes and was given the name Senior Don Jaime, El Gatilan De La Noche-Sir James, the Night Hawk. He was the one living pilot who could attend a very wild party, lace a foundation of Mexican beer with Mexican tequila and then jump into his airplane, fly through the dark Mexican sky and land on a rutted landing strip of sand, cactus and mesquite, lighted only by small flares or flashlights.

When Walter finished his hitch in the Navy he joined Jimmy in Mexico and using two airplanes they flew many mysterious midnight missions. Although many of these were questionable, involving guns, liquor, contraband, Mexican Generals and revolutions, Jim and Walter were never in real serious trouble. At least none that they couldn't fly out of.

It appeared that everything the Wedell brothers did had to be spectacular, so when Walter and Henrietta Filiberto of New Orleans decided to get married in 1929, and they agreed that the wedding should take place in the air. They gave it the full treatment with flower girls spreading the flowers to the Ryan wedding plane. Jimmy was the pilot and also best man. The music was furnished by a local radio station so that all in the New Orleans area could listen.Wedell-Williams-Gilmore

It was in this wild period that Jimmy began to get ideas about planes he was flying and what he might do to improve their performance. He contacted Harry Palmerson Williams, a wealthy planter and lumberman. Williams wanted to buy an airplane and Jim had one to sell.

Not only did Jim sell him the airplane but taught him to fly-and fly well. During this instruction period Jim also sold himself, and Harry Williams backed his belief in Wedell's ability with two million dollars, an almost unheard of sum for those days.

This gave Jimmy a chance to achieve his lifetime ambition, to build an airplane of his own design, to get the speed and safety he wanted and not have to stop every few days to barnstorm for gas and hamburger money.

With Harry Williams backing him, the Wedell-Williams Air Service, Inc. (1928), was organized. Jimmy Wedell was appointed President and told to go ahead and build his dream.

Wedell-Williams-GilmoreJimmy built airplanes by eye, as the untrained musician plays by ear, but they flew and they were fast. He wanted to build the fastest, safest fighting and mail planes in the world. At the same time he wanted them safe enough for the average pilot to fly at a top speed of 400 mph plus. Work began with Jimmy drawing some chalk lines on the hanger floor.

This roughed out the size and shape of the first Wedell Williams Special. From this Walter Wedell, Charles (Frenchy) Fortune, Eddie Robertson and Jimmy started welding. Periodically, Jim would cock his head and state, "That looks about right for length or span," and not until the racer was finished, was the actual measurement made of the total length or wing span.

This was true, to a great degree, with the construction of all the Wedell-Williams racers. The results of the first project was a low wing, Hisso-powered racer carrying license number NR278V. It would be later twice revamped to become the famous Wedell No. 44.

Late in December of 1929, rebuilding and revamping began on number 44. It was to be entered in the January 1930 Miami Air Races, so time was short and the midnight oil burned freely. As race time approached, it became more evident that the project would not meet the deadline, still work continued.

Then late in January (too late for the race), the bullet nosed 180 hp V-8 Hisso-powered racer emerged from the hangar. A tightly cowled V-type engine gave the racer the appearance of the Verville R-3 Speedster of 1924. Its landing gear assembly was set-up for a full speed fairing, from the bottom of the wings to just below the wheel axle. Small pants covered the wheels only and the remainder of the assembly was not faired. The wing span measured 30', length 24'8": the paint job was scarlet and silver and she unofficially timed at 210 mph.

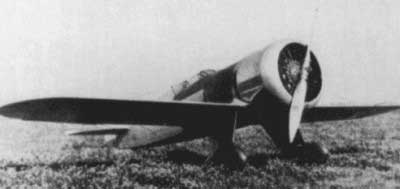

Wedell-Williams-GilmoreDuring the year 1930, Wedell-Williams produced three racing aircraft. First the No. 44 NR-278V already mentioned, another model 44 which would become famous as No. 92-NR-536V tin fact during 1930 these two racers participated in several match r aces) and a Cirrus powered job ~ NR-10337) to be entered in the 1930 American Cirrus Derby.

They all had something in common. Each took approximately 90 days to build and each was painted scarlet and silver; all parts were scarlet except the wings and horizontal tail surfaces which were silver. Their race numbers were 90, 91 (44), and 92.

The small job was dubbed "WeWill, Jr." and was powered by an inverted four cylinder super-charged hi-drive Cirrus engine rated at 110 hp at 2100 rpm. Wing area of the racer was 120 square feet, gross weight 1440 pounds and top speed estimated at 170 mph. A small, streamlined red spinner covered the prop hub while the landing gear and wheels that had been set up for full speed fairing's remained uncovered. Time had not permitted the construction of the streamlined fairing's.

"WeWill, Jr." was licensed NR-10337 and drew race number 17 for the 5,541 mile, 16 leg cross country race. Twenty-five thousand dollars was the prize money that "WeWill, Jr." would be vying for. The race started in Detroit, east and then south through Texas, across the southern U.S. to California and back to the northern route to Detroit. A tough go for both pilots and planes as every type of terrain and flying condition would be encountered.

Wedell-Williams-GilmoreDuring the first legs of the race, Jimmy fought and exchanged first spot with Lee Gelbach in the "Little Rocket," and Lowell Bayles in the "Gee Bee". However, as the race continued it appeared that the Wedell was faster but the "Little Rocket" more dependable. Arriving in Los Angeles and still fighting for first, Jim decided the Cirrus needed a bit of repair He flew "WeWill, Jr." to the Lockheed factory for the engine work, plus installation of wheel fairing's, the type that later appeared on Northrop airplanes.

This work was accomplished during the night and Jim and the racer were at the starting line the following morning. He fired the Cirrus up, checked her power and blasted off into the dawn. But not for long. At 100 feet the Cirrus froze and the prop stopped dead. With no altitude to play with, Jim crash landed straight ahead shearing off the new landing gear and damaging both wings. This eliminated "WeWill, Jr." from any thoughts of first spot in the Derby, but work began immediately to salvage what could be from the race. Twenty-four hours later, and with no sleep, Jim took to the air, ( less wheel fairing's and with repaired wings', in pursuit of the leaders.

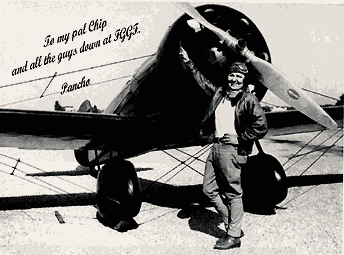

Pancho

Full throttle - all the way to the firewall - the throttle position Jim maintained during the balance of the Derby), "WeWill, Jr." went, but the lost time was too great and Wedell finished eighth, and collected $1,600.00 in prize money.

Later in 1930, "WeWill, Jr." appeared at the Chicago National Air Races. Race number 90 replaced No. 17 and small pants covered only the wheels. During these events Jimmy placed third in the 350 cu. in. free-for-all ( 140.08 mph) and fifth in the 450 cu. in. free-for-all ( 132.24 mph).

"WeWill, Jr." did not appear again until 1932, and then with a very new look. Completely rebuilt to vie for lower power class race money, "WeWill, Jr." had its wings clipped about eight inches and its fuselage shortened by four inches. A new streamlined landing gear with wheel pants, a closer cowled engine, and a new propeller spinner all helped the "WeWill, Jr." look like a new airplane.

Even a new license number of NR60Y was acquired with a new designation of Model 22 (1/z size 44) was assigned to its design. However, for one reason or another the now two tone blue (dark and light), racer did not appear at the 1932 National Air Races, but did appear at smaller races in the south including New Orleans and Baton Rouge.

Early in 1933, NR60Y appeared with another change. A six cylinder 489 cu. in. Menasco power plant replaced the Cirrus. Test flights were made on April 21, 1933 and the ship was readied for the National Air Races which were to be held during July. The racer retained the two tone blue paint job, but race number 54 replaced 22.

Again disaster struck, and again in Los Angeles during the Nationals. A fire on the ground eliminated NR60Y from the 1933 Nationals. All the fabric was burned from the fuselage and the racer was then pushed into the corner of the hangar and its Menasco engine was removed. After the 1933 event the engine was shipped back to Patterson and the balance of the aircraft remained in Los Angeles where it was purchased by Dave Elmendorf.

A second model 22 had been built and the Menasco from NR60Y was placed in this frame. The second model 22 differed from the original in the shape of the fuselage and empennage. Wings and cowl were definitely Wedell, but the aft section had been built by Delgado Trade School of New Orleans and resembled their racers of later years-in fact the empennage and fuselage were almost identical with the "Delgado Maid" and "Flash". Jimmy loaded the airframe and engine on a truck and took off for the International Air Races in Chicago.

Wedell-Williams-GilmoreArriving at Chicago, Jim assembled the plane and completed the installation of the Menasco from NR60Y. This work was completed the starting day of the races,1 September,1933, and a 15 minute test hop was the only flying Jim had time for. Model 22-No.2 was licensed NR64Y and earned race number 22 on its flanks. Air Race blanks show that the ship was entered with race number 54, this would indicate that Jim planned to race NR60Y at these races and the fire in Los Angeles necessitated the change of airplanes.

NR64Y participated in only one event. Jim pulled out after the first lap as the engine was not functioning well enough to continue this event or enter any subsequent races. There was no time for engine repair as Jim also had the Model 44 at the races, so 64Y was pushed to the corner of the hangar until the International Air Races were completed. After the race the little racer was disassembled and trucked back to Patterson, Louisiana. Later Jim made one more attempt with it. He reassembled the racer and on 25 February, 1934 flew a 20 minute test hop. Performance of the airplane was not acceptable so the Menasco engine was removed, and the remainder of the racer was donated to Louisiana State University.

NR60Y did not appear again until 1935, this time wearing its original race number 22 and a red and silver paint job. Dave Elmendorf had purchased the ship and was the pilot during the National Air Races. He placed seventh in the Greve Trophy Race and fourth in one of the Greve preliminary heats with a speed of 176.016 mph. This was the last record in NR60Y's race history.

Now back to the other two racers Wedell built in 1930. First, NR-278V (Race No. 91) mentioned earlier. Jimmy entered this racer in the 1930 Los Angeles to Chicago cross country race and was leading until the Hisso broke an oil line forcing him to land in Texas. Wedell finished the trip to Chicago by commercial-transportation, arriving just in time to fly "WeWill Jr." in the first event. Later he returned to Texas, repaired the oil line and engine and flew No. 91 back to Patterson, Louisiana for revamping.

Redesigned, the 1931 version of NR-278V would later become the famous No. 44. A full remodeling job resulted in a 23' fuselage, 26' wing span and a Pratt and Whitney replacing the Hisso. Exceptionally clean lines extended throughout the entire aircraft. A streamlined NACA cowl -so small that faired bulges were needed to allow room for the cylinder arms -housed the 550 hp Wasp Jr. Pratt and Whitney engine. Pants covered the wheels, and the gear itself consisted of two narrow, well faired struts.

Wedell also had a great love for guns, maybe his Mexican experience developed it, nevertheless, he was an expert marksman and this is where the Model 44 and 22 originated. On the side oRosco with his Wedell-Williams Racersf the Model 44 was painted a pistol, with a printed legend: "Hot as a 44 and Twice as Fast".

In keeping with this pattern, race No. 44 was added to the wings and fuselage, a number the ship would retain throughout its entire race career. Thirty hand rubbed coats of red and gold dope gave the racer a finish that reflected like a mirror and looked elbow deep.

This was the year Wedell racers started to click. Trailing Lowell Bayles in the "Gee Bee," Jimmy and No. 44 finished second in the Thompson Trophy Race with a speed of 227.99 mph. He also placed second in the free-for all at 221.0 mph and third in the 1000 cu. in. event, with a sour engine, at 167.106 mph. After the 1931 Nationals Jimmy did some engine tuning on the ship and turned a speed of 255 mph.

He also set a cross country record (Three Flags Race) that started at Ottawa, Canada, went on to Washington, D.C., and thence to Mexico City. Jimmy and No. 44 started out at dawn, streaked to Washington, D. C., refueled and took to the air for Patterson, Louisiana. A quick stop at Patterson for fuel, then into the sunset and Mexico City, all in 11 hours and 59 minutes. This was quite a feat for this era and in doing so Jimmy broke the 12 hours 36 minute record set by Jimmy Doolittle and his Laird "Super Solution".

During the winter months of 1931-1932, Wedell and his crew were busy building and rebuilding racers. He completely revamped No. 44 and in the process shortened the fuselage another two feet. The supercharged Wasp Jr. was retained but a smooth cowl replaced the 1931 bulge. This would indicate that Wedell went to a larger cowl. Perhaps the smaller cowl had given some cooling problems. A new high gloss red and black paint job that would remain on the racer for the balance of its career, reflected the many hours of sanding and polishing.

Along with the remodeling of No. 44, the previously mentioned No. 92 was undergoing revamping. No. 92 would also be a Model 44 with outward appearance very similar to NR-278V. However, the landing gear legs extended from the wings in almost a straight line while No. 44 angled out a bit. In addition to these two, a third racer was being constructed for Roscoe Turner. This, too, was about identical to No.44, except internally. Extra bracing had been placed in the wing and fuselage area, causing the wings to flex less than in the other racers. Licensed NR-54Y, it had a very short career as it crashed on the third test flight.

Jim had taken the racer aloft for the test, to check its performance at altitude and all had appeared normal. Then came the ultimate test, a flight virtually at ground level with wide-open throttle. He would try for 300 mph, starting in a shallow dive then leveling off to streak across the field.

Flying so low he seemed barely to clear the tops of the standing sugar cane in the fields adjacent to the airport Jimmy-seated on some 30 pounds of iron to make up for the difference between his weight and Col. Turner's- came roaring toward the airport. Just as he reached the edge of the airport, a wing flutter developed causing a main wing flying wire to snap. At this point the left wing seemed to explode and collapsed. Jimmy literally rode the engine to a safe altitude at which point he bailed out just as the racer disintegrated. His parachute opened and he landed safely minus one shoe that never was found.

The remainder of the plane crashed nearby, leaving only a cupful of jeweled bearings from the instrument panel as salvage material. Reason for the crash was the rigidity of the wings causing the left one to snap off instead of flexing.

Wedell-Willams RacerGilmore Oil Company had sponsored the building of this racer for Turner, so construction of another ship started immediately. This was completed in time for the National Air Races and 1932 proved to be a banner year for the three big Wedell-Williams racers. They chalked up two firsts, five seconds, three thirds and two fourths. These included a first, second and third in the Bendix Race, a second, third and fourth in both the Thompson Trophy Race and the Shell Speed Dashes. Yes, Jimmy had his racers really cleaned up.

Flying his own No. 44 Wedell placed second in the Bendix (232 mph), Thompson (242.50 mph), Shell Speed Dashes (277.06) and 1000 cubic-inch event 202.74 mph).

In 1933 Wedell was back at the Nationals with his fast No. 44. He had replaced the fabric around the cockpit area with aluminum as he felt that the fabric in this area was a source of drag. He lost no time letting the other race pilots know that he was after the money.

During the off season Jimmy made the engine and cowl installation more flexible and it required only six hours to change front the Wasp Jr. to the Wasp Sr. Then, on the 24th of June 1934, Jimmy Wedell was killed in an air crash. The crash occurred while flying his Moth aircraft and giving Frank Sneering a student pilot from Mobile, Alabama, instructions. The aviation society had lost a great member of their team, one who had given much of himself and still had so much more to offer. He took to the grave with him many advancements and designs but many others that he introduced into aviation live on. He established many records that are not listed herein and placed his name in racing history where it lives forever. Wedell-Williams-Gilmore

Douglas Davis (1929 winner of the Thompson Cup Race was picked as pilot for the famous No. 44 during the 1934 Nationals. The engine change was used at the Nationals, so the racers No. 44 and No. 45) appeared both with a bulge cowl and smooth cowl. Davis pushed the black and red Wasp Jr. powered racer to first spot in the Bendix, beating out Wedell's last design, No. 45. His speed for the Bendix was 216.24 mph. He also won the first spot in the 1000 cubic-inch race with a speed of 220.95 mph and turned in a speed of 246 mph in the Shell Speed Dash. The Wasp Jr. was then replaced by the Wasp Sr. out of No. 45) and the smooth cowl was replaced by the bulge cowl also out of 45.

With this engine, Davis flew over the Shell course at 306.216 mph. One lap was turned at a speed of 325 mph. This speed picked up the first spot in the 1934 Shell Speed Dashes. Turner placed second and Johnny Worthen placed third and fourth flying the Wedell 45 and 92. Before the Thompson, Davis complained about the shortness of the course and also not being familiar with the position of the pylons. He almost withdrew from the race. In fact, he was supposed to have flown this ship in the 1932 Thompson but his wife talked him out of it.

However, this time she consented to let him fly the race but refused to watch it. Doug and the black and red piece of dynamite were first off the ground and he poured on the coal to increase his lead. Going into the eighth lap he was leading the pack with a speed of 253 mph and still pouring it on. On the next pylon, not wanting to be disqualified by cutting too short, he pulled the No. 44 into a very tight turn to re circle. The little ship loaded to the extreme with "G's" shuddered and went into a high speed stall, snapped into a spin and plunged to the ground. Davis was killed instantly. Again, another great in aviation was lost but not before he contributed much to the thing he loved most.

Of the three original racers built by Jimmy Wedell in 1930, the one not covered as yet is NR-536V or No. 92. Nicknamed "WeWinc," No. 92 had been built as a two place sport plane with the possibility of developing it into a fast mail plane. It also was a low wing job with the same type of wheel pants that were originally fitted to the Cirrus and No. 44. Powerplant for the 1930 version of "WeWinc" was a Townsend ring cowled 225 hp Wright J6-7 765 cu. in.) engine. Its wing span was 30', length 22' and it carried the Wedell red and silver paint job. During the Nationals the front pit was covered, and full (Northrop type) skirts covered the entire landing gear assembly. With 92 as a racer number and Errett Williams the pilot "WeWinc" placed second in the 1000 cu. in. event (159.07 mph ), second in the 800 cu. in. (161.73 mph) and sneaked in fourth in an additional 1000 cu. in. race (150.75 mph). Speeds for the winners of these events were 162.62 and 162.43 mph, indicating that Errett was always in contention. "WeWinc" was entered in the Thompson Trophy Race but was forced out by engine trouble on the eighth lap.

"Miss New Orleans" was back at the Nationals in 1933, with no changes except the pilot and a slight change in paint design. Jimmy Hazilip had retired from the race game, so Lee Gehlbach, who flew the "Gee Bee" R-2 in the '32 races and the Commadaire "Little Rocket" to victory in the 1930 Cirrus Derby, took over the controls of No. 92. During the Bendix, Lee was running short of fuel. He was east of Indianapolis but felt he could make it. Then with the airport in sight, the Pratt-Whitney quit and Lee started a glide to the field. Glide angle is not very good on racing aircraft and Lee ended up one mile short, in a corn field. Damage was slight and with minor repairs and fuel, the race was continued on to Los Angeles, but not in time to place. Later Gehlbach flew the ship to second place in the Thompson 224.95 mph), second in the 1000 cu. in. race at 192.93 mph) and slipped to third in the Shell Dash (251.93). Mae Hazilip again tried her luck and skill in the woman's race. This time she won with a speed of 168.22 mph.

Wedell-Williams-GilmoreTwo new Wedell- Williams race pilots appeared in 1934. Walter Williams Jimmy's brother) and John Worthen (an associate of the Wedell-Williams Air Service, Inc.) divided their pilot time between No. 92 and No. 45. Walter really hated racing but after the death of Jim, figured he should attempt to take over where Jim had left off. He had idolized Jim and his racing.

After Jim's death, Walter became more and more against flying but continued in the manner he felt Jim would have wanted. Walter flew No. 92 to second place in the 1000 cu. in. event, (219.50 mph). Walter placed third in the Thompson (208.38) and fourth in the Shell Dash `248.91 mph) with the same racer.

Old No. 92 did not appear in the 1935 or '36 National Air Races. In 1936 this ship was bought by Jack Wright of Utica, New York. Wright made no changes on the racer except to paint the name "Utican" on the cowl. He picked Art Davis as the pilot for the ship and entered it in the 1937 National Air Races. Unfortunately, Davis nosed the racer over on the way to the starting point of the Bendix and was unable to get the ship repaired in time for the balance of the '37 races.

During 1938 the New York State Aviation School reconditioned the ship for the races. The paint job was all white and a new constant-speed propeller was fitted to the nose. A new cockpit and windshield also changed the looks of old No. 92. But trouble again hit and the "Utican" and Lee Gehlbach, who once again sat in the cockpit, was forced out of the Bendix.

The gallant old racer that had participated in the Nationals since 1930 was bought by Woody Edmondson ~famous Monocoupe stunt pilot) but the coming of World War II stopped any modifications planned for the racer and during these war years she became the victim of salvage and supplied tubing and parts to keep other aircraft flying.

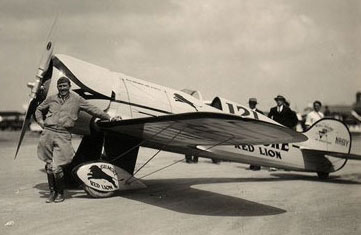

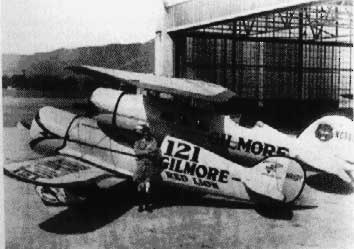

Roscoe Turner's "Gilmore Special" was the third Model 44 present at the 1932 races. This was NR61Y the second built for Turner after his first NR54Y crashed during tests. Painted a beautiful bronze gold and trimmed in red with the Gilmore Lion and race number 121 displayed on the side of the fuselage, the racer presented a picture of speed for its Gilmore Oil Company sponsor. Colonel Turner placed third in the Bendix (226 mph), Thompson 233 mph) and Shell Dash (266.67 mph) each time following No. 44 across the finish line. Later the same year Turner lost his sponsor but being quite a promoter he acquired movie stars Miriam Hopkins, Bebe Daniels, Constance Bennett, and Carol Lombard as backers.

Not happy with third spots, Turner showed up at the 1933 Nationals with a new Wasp Sr. engine in his racer. As mentioned, the Gilmore people no longer sponsored the ship, but the Gilmore paint job still decorated the wings while the fuselage had a new paint job and on the side in bold letters was painted "20th Century Pictures-The Bowery". A new race number 2, replaced 121 and the engine cowl for the Wasp Sr. was burnished metal. The 1933 races netted Turner some firsts but also threw him a curve when he was disqualified from winning the Thompson for cutting a pylon. He did circle the pylon, but not on the same lap as the rules called for. He had led the Thompson with a speed of 241.03 mph but when disqualified the first spot went to Jimmy Wedell with a speed of 237.05 mph. Roscoe, however, did pick up a first in the Bendix (214.78 mph) and a first in the Shell Dashes at 280.25 mph.

During the years 1932 and 1933, Turner set many inter-city and coast to coast records selling aviation and giving his sponsors a real show for their money. Late in 1933, Chicago played host to the International Air Races and Roscoe again settled for second behind Wedell. Jim had exchanged his Wasp Jr. for a Wasp Sr. and outran Turner by 15 miles an hour. Turner's speed for the Shell Dash was 289.9 mph and Jim's 305.33 mph. The only change Roscoe had made in his ship was the removing of the "20th Century Pictures" and replacing it with "Ring Free Special". The racer was entered in the International Races with race number 17, but it is doubtful if that number was ever painted on it.Wedell-Williams

After the trimming he had taken from No. 44, Turner removed the Wasp Sr. 1344 cu. in. engine and replaced it with a 1690 cu. in. 1000 hp Hornet engine. A smooth cowl was used at first but later, because of the large frontal area, changed to a tighter fitting smaller cowl with fairing bumps for the rocker arms. The racer sported a new race number 57 for Roscoe's latest sponsor, the H. J. Heinz Company and their 57 varieties of canned foods. Turner won the Thompson Trophy Race with a speed of 248.13 mph. Davis had been leading at the time of his crash with a speed of 253 mph. Turner followed Davis in the Shell Speed Dash with speeds of 306.215 mph and 295.47 mph for the


first and second places.

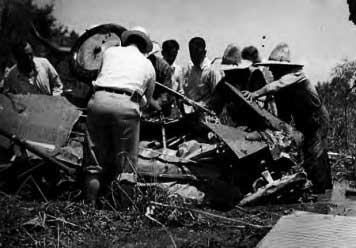

Jimmie Wedell Crash

Specifications
Length: 24 ft 6 in
Wingspan: 26 ft
Height: 8 ft 1 in
Empty weight: 2,492 lb
Loaded weight: 3,892 lb
Powerplant: 1× Pratt & Whitney
R-1690, 1,020 hp

Performance

Maximum speed: 316.55 mph
Range: 900 miles
Service ceiling: 14,000 ft
Power/mass: 0.26 hp/lb
On June 24, 1934, aviation suffered a crushing blow when Jimmie Wedell died in this plane crash. At the time of his death, Wedell was recognized as the speed king of the world, aviation's most successful designer of racing planes, and the holder of more records than any other flyer.
