Piper TwinCub - $4.95

This odd little aircraft was actually built, flown, photographed, raved about, and then returned to it^s original TWO Cub configuration. Makes one want to ask ..why? Have at it!

Twin Piper Cub downloadable cardmodel

Wagner Twin Cub Oddity

title image.jpg

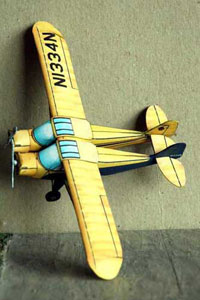

Off the wall







The Twin Cub was the brainchild of Mr. Harold Wagner of the Wagner Aircraft Co. at Troh's Skyport, Portland, Oregon. He wanted to create a simple and cheap twin engine SUV type aircraft and started experimenting with a PA18 Super Cub which he equipped with a second engine on top of the fuselage. The sports utility aircraft made its first flight on May 29, 1952 but tail flutter caused by the down thrust of the extra power plant meant that the Twin Super Cub project had to be ended prematurely after only 8 hrs of flight time, after which the Super Cub was returned to stock configuration.








Wagner Twin Cub:





Wagner Twin Cub landing


Wagner Twin Cub and dude Mr. Wagner's second attempt produced an even uglier machine, called the Twin Cub. It consisted of a J-3 Cub and a PA-11 Cub Coupe fuselage mounted side-by-side using a small wing center section and central tail plane. The outer wing panels and tail plane were standard components. The resulting aircraft looked so odd that even Mr.Wagner called it "The Thing". Because of the close proximity of the fuselages, only the right hand one could be occupied by a pilot and passenger, the left hand fuselage serving only the purpose of engine mounting.

No propeller synchronizing was envisaged, the props rotating in different planes instead, to prevent hitting each other. This was accomplished by a 'distance piece' on the left hand engine/prop combination. It is claimed that flight qualities were just great, even with one engine out. One wonders, however, with all that prop wash interference.


Even though the purchase price was said to be about half of a regular twin engine aircraft, the Twin Cub remained a one-off and Mr. Wagner turned his attention to the Twin Tri-Pacer, where he bolted two engines to the nose of an otherwise standard Piper PA-22 Tri-Pacer.

None of the Wagner conversions achieved commercial success and both the Twin Cub and Twin Tri-Pacer returned to standard configuration.

Wagner Twin Cub

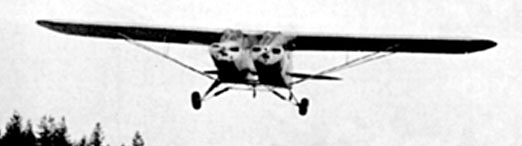

Wagner Twin Cub flying

Wagner Twin Cub


Guido Van Roy, Langdorp, Belgium sends in this curious little model for us all to enjoy and chuckle over.
Basically, it's a spin-off of our free Piper Cub model that gets downloaded about 375 times every day!!


Twin Cub RC model
This is an RC flying model of the Twin Cub.

Wagner Twin Cub props

Twin Cub Details

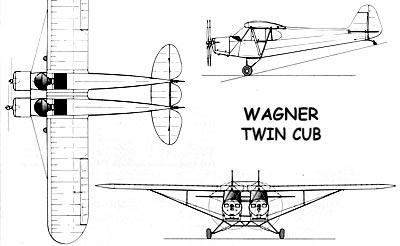

Wagner Twin Cub-3vu
Wagner Twin Cub data
Engines:2 Lycoming 85 hp
Wing span : 38ft 6in
Length : 22 ft 0in
Empty weight : 1250 lb
Maximum speed:120 mph
Cruising speed : 100 mph
Landing speed : 50 mph
Stalling speed : 38 mph
Rate of climb : 1500 ft/min

Thanks to Guido Van Roy for the
design and made up model.(right)




Here are a few more TWIN FUSELAGE aircraft.....

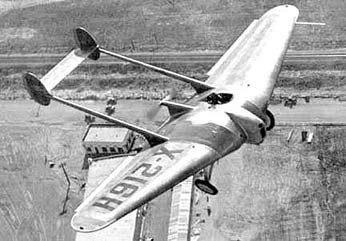

FW-216
An early (1929) variant, a design study aircraft from Jack Northrop, leading to his N9MB, XB-35, and YB-49 Flying Wings

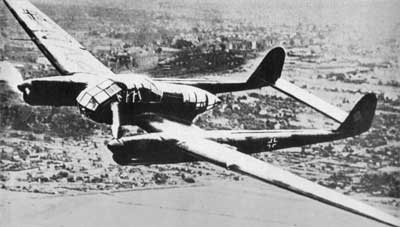

FW-189
The FW 189 Uhu (Owl), known as the "The Flying Eye", an elegant reconnaissance plane, apparently specially designed for aerial photography

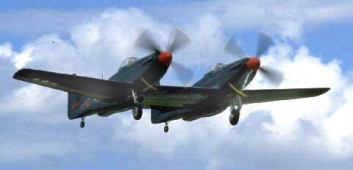

P-82
The "Confederate Air Force" in Harlingen, Texas, actually has a Twin Mustang

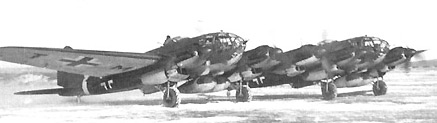

HE-111
The He-111Z "Zwilling" ("Twin") and had an extra (fifth) engine tucked into the mid-span wing juncture. This was the tow plane to pull the Gigant glider.

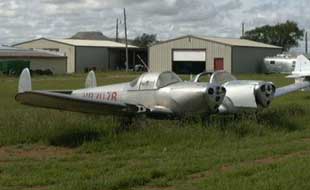

Twinned Ercoupes
Twin Ercoupes

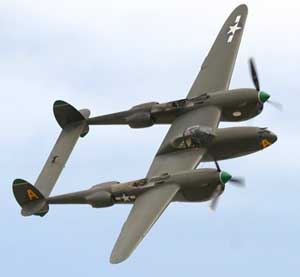

P-38 Lightning
The classic P-38 Lightning, known to all
